| Product Overview |
Model |

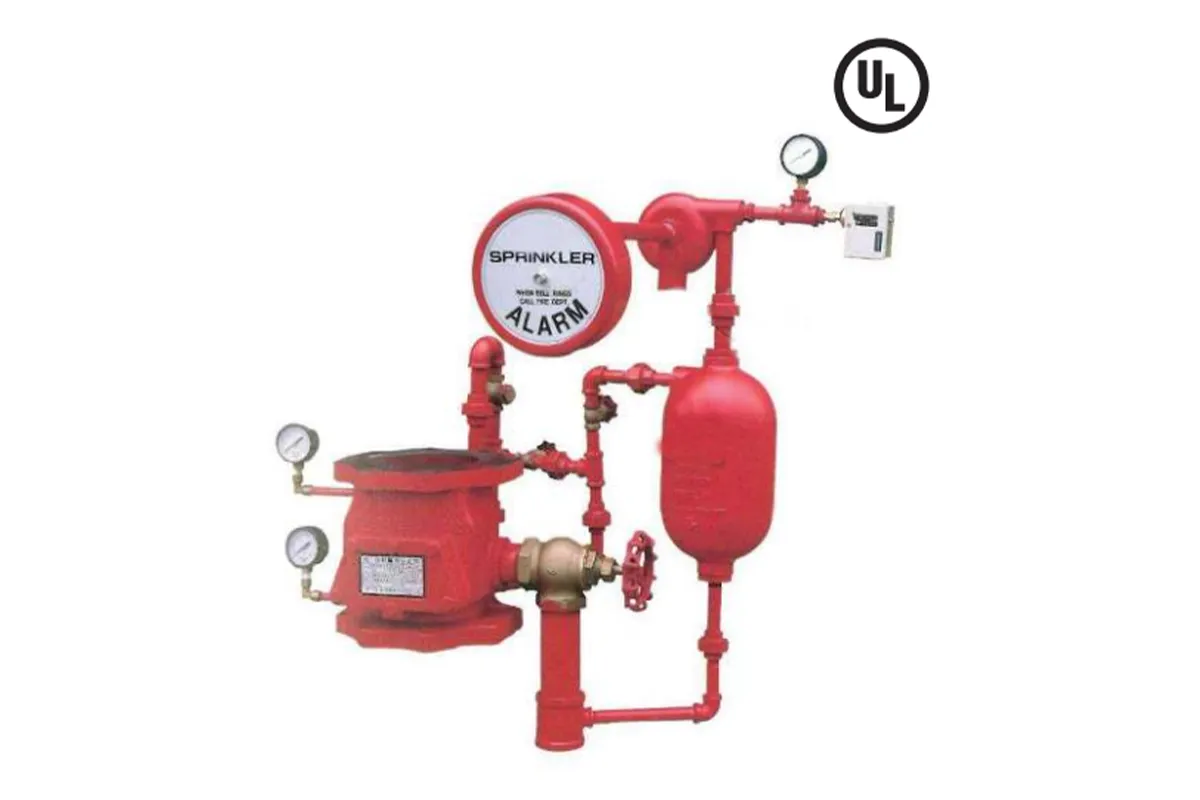

SD-ECO-AVA |
|
Valve Type |
Wet Alarm Check Valve |
|
Application |
Wet Pipe Fire Sprinkler Systems |
|
Installation |
Vertical |
|
Function |
Maintains System Pressure & Triggers Alarm Upon Flow |
|
Alarm Activation |
Water Motor Alarm / Electric Pressure Switch |
| Design Features |
Alarm Port |
Grooved Seat Alarm Port |
|
By-Pass |
External By-Pass |
|
Hand Hole Cover |
Removable & Hinged to Clapper Assembly |
|
Trim Package |
Includes Valves, Gauges, Pressure Switch, Fittings & Nipples |
|
Retard Chamber |
Provided for Connection |
|
Alarm Test |
By-Pass Line Included |
| Performance |
Rated Working Pressure |
175 PSI |
|
Working Pressure Range |
21 PSI – 200 PSI |
|
Test Pressure |
350 PSI |
|
Non-Actuating Flow |
Below 4 GPM |
|
Max Flow Rate (150 NB) |
790 GPM |
|
Max Flow Rate (100 NB) |
550 GPM |
| Connection Details |
Nominal Size |
100 NB / 150 NB |
|
End Connection |
Flange × Flange |
|
Flange Standard |
ANSI B16.5 Class 150 / ANSI B16.1 Class 125 |
|
Flange Facing |
Flat Face |
| Hydraulic Data |
Frictional Loss (C-120) |
40 ft Equivalent Length (100 NB & 150 NB) |
| Material Construction |
Body Material |
Grey Cast Iron |
| Weight |
150 NB |
Approx. 37 Kg |
|
100 NB |
Approx. 20 Kg |
| Ordering Information |
Required Details |
Specify Valve Size, Flange Type, Trim Details & Pipe OD |
| Key Benefits |
Reliability |
Prevents Pressure Fluctuations |
|
Safety |
Ensures Timely Alarm Activation |
|
Compliance |
Suitable for Non-Freezing Wet Pipe Installations |
