| Product |

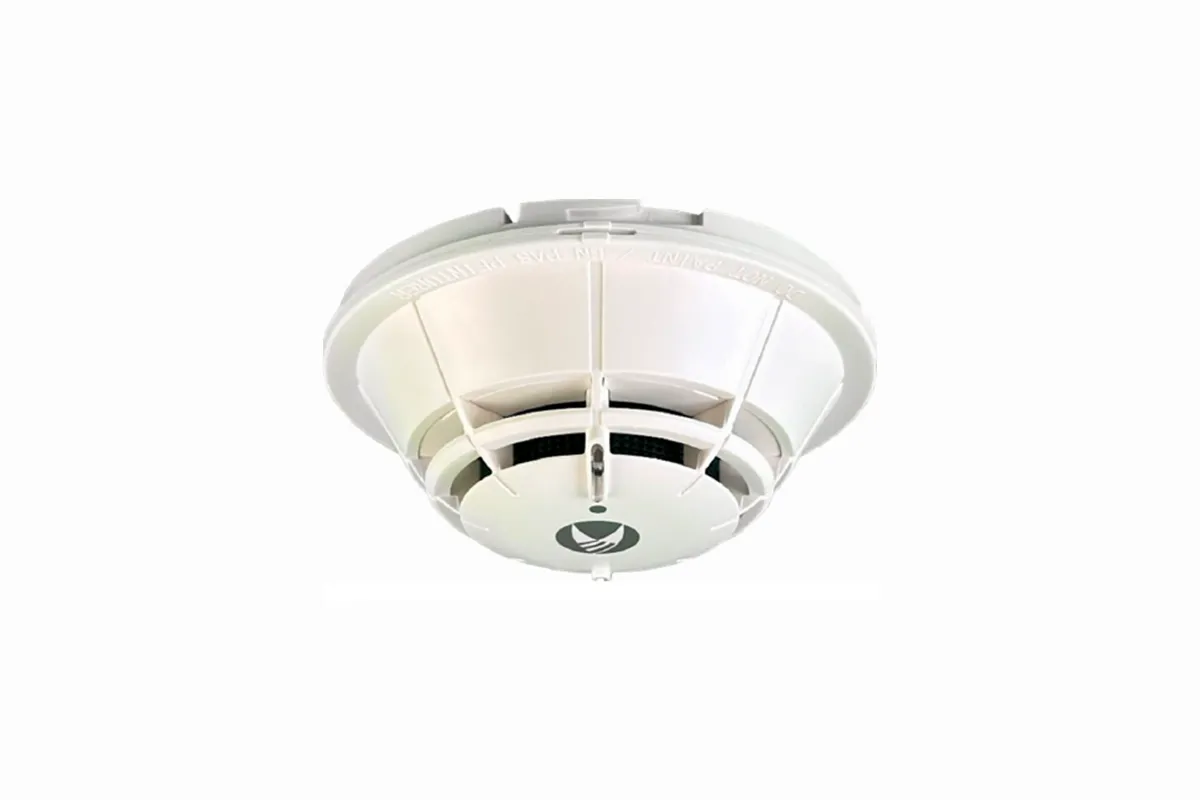

Series 2 FW2511 Photoelectric Smoke Detector |
| Type |
Intelligent Addressable Smoke Detector |
| Detection Method |
Photoelectric |
| Nominal Voltage |
24 VDC |
| Operating Voltage |
15.3 – 28 VDC |
| Standby Current |
0.16 mA |
| Alarm Current |
0.65 mA |
| Smoke Alarm Set-Point |
UL: 1.34%–2.45%/ft · ULC: 1.63%–3.11%/ft |
| Communication |
Occupies 1 SLC address |
| Compatible FACP |
FW2105, FW2107 |
| Compatible Bases |
FW2501, FW2502, FW2509 |
| Certification |
UL 268, ULC-S529, FCC |
| Installation |
Ceiling or Wall, Dry indoor use |
| Operating Temperature |
0°C – 49°C (32°F – 120°F) |
| Humidity |
0 – 93% RH (Non-condensing) |
| Material |
High-impact plastic |
| Dimensions |
105 mm Ø × 43 mm H (4″ Ø × 1 5/8″ H) |
