| Product Overview |

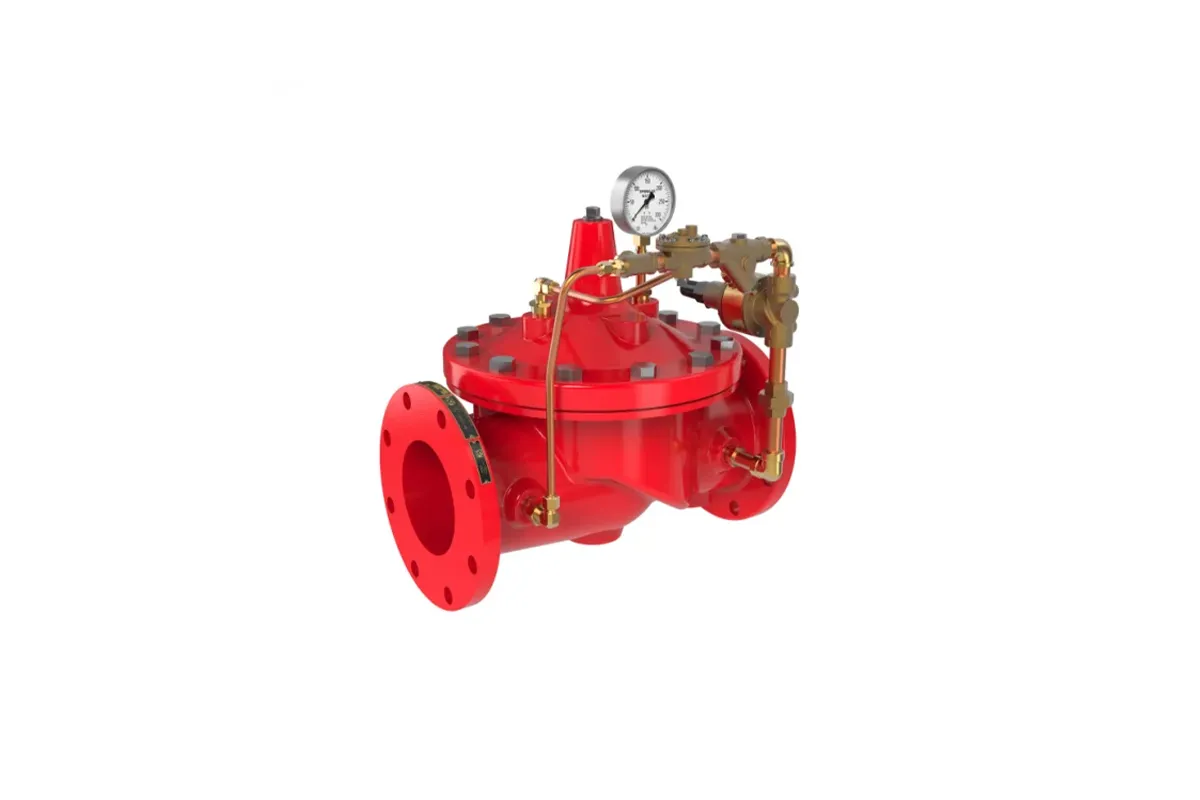

Model |
2050B-4KG1 |
|
Brand |
CLA-VAL |
|
Valve Type |
Pilot Controlled Pressure Relief Valve |
|
Application |
Fire Protection Pump Discharge Systems |
| Function |
Primary Role |
Automatically Relieves Excess System Pressure |
|
Pressure Control |
Maintains Constant Pump Discharge Pressure |
|
Response |
Fast Opening to Stabilize Line Pressure |
|
Closing Action |
Gradual Closing for Surge-Free Operation |
|
Adjustment |
Adjustable Pressure Settings |
|
Performance Stability |
Not Affected by Discharge Pressure Variations |
| Flow Characteristics |
Flow Capacity |
Accommodates Wide Range of Flow Rates |
| Construction & Coating |
Main Valve Material |
Ductile Iron (Standard Epoxy Coated) |
|
Optional Coating |
Internal & External Epoxy Coating on Wetted Surfaces |
| Certifications |
Listings |
UL Listed / ULC Listed |
|
Approval |
Factory Mutual (FM) Approved |
| Key Benefits |
Reliability |
Precise Pressure Control |
|
Safety |
Protects Fire Pump & System from Overpressure |
|
Durability |
Corrosion-Resistant Epoxy Coating |
|
Efficiency |
Ensures Stable System Operation Under Varying Demand |
