| Code |
ULMCIM / ULMCIM-C |
| Description |

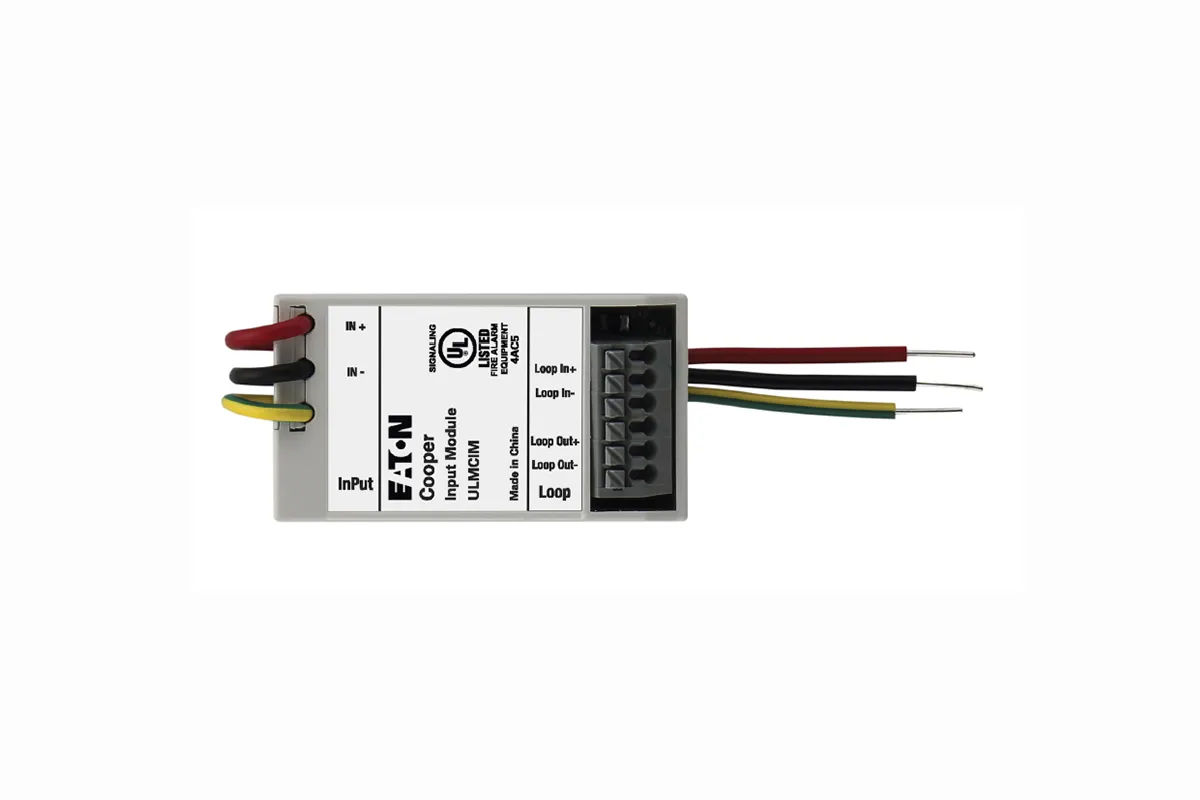

UL Intelligent Addressable Micro Single Channel Input Unit |
| Application |
Monitoring NO volt-free contacts (sprinkler flow, fire/fault signals, valve status, generator start, fire door status, etc.) |
| Standard |
UL 864 (9th Edition) |
| SLC Type |
Style 7, Class A (Supervised, Power Limited) |
| SLC Current |
332 µA |
| Operating Voltage |
24 VDC |
| Input Type |
Initiating Circuit Class B, Style C (Supervised, Power Limited) |
| Input Voltage |
8.4 Vpp (Pulsed every 1 sec) |
| Input Current |
1.2 mA |
| Trigger Resistance |
5.6 kΩ |
| End-of-Line Resistor |
22 kΩ |
| Max Line Impedance |
6 Ω |
| Short Circuit Protection |
Integral Short Circuit Isolator |
| Operating Temperature |
0°C – 49°C |
| Humidity |
0 – 93% RH (Non-condensing) |
| Dimensions (H×W×D) |
65 × 35 × 18.5 mm |
| Weight |
0.05 kg |
| Ingress Protection |
IP40 |
| Compatibility |
Suitable for Eaton UL Fire Systems |
