| Product Overview |
Series |

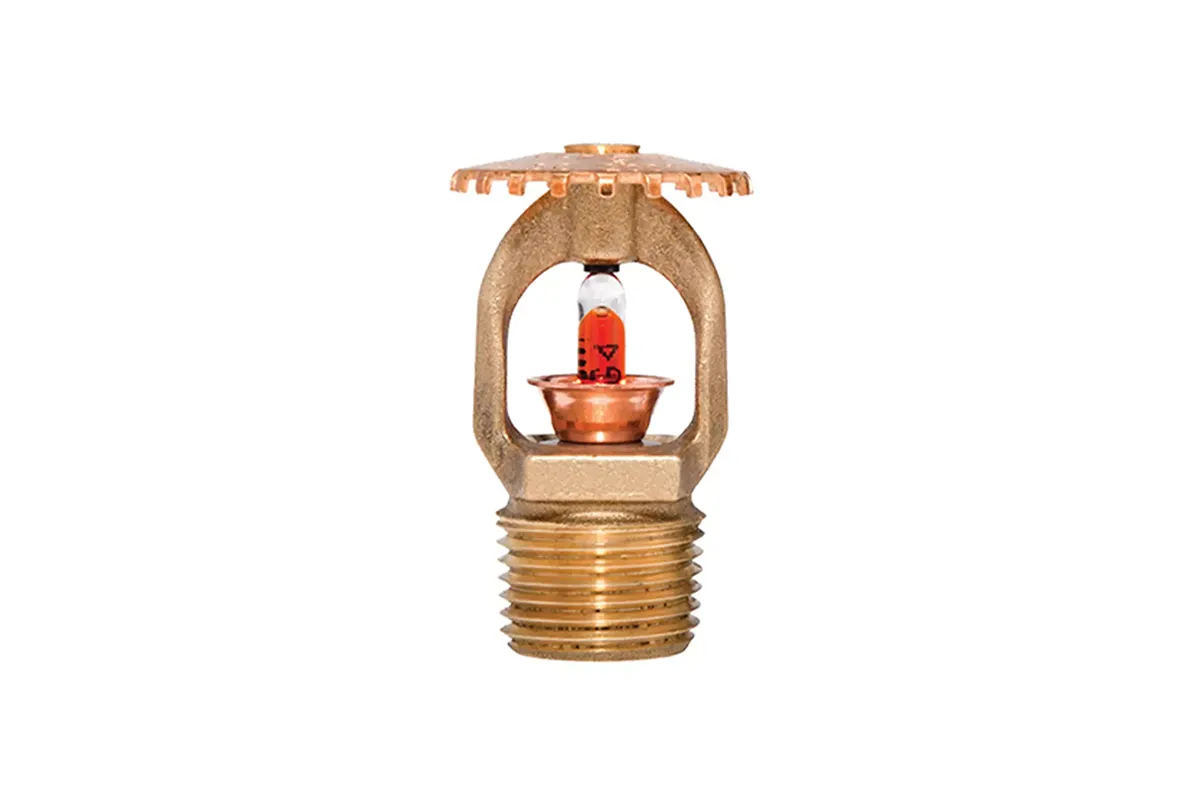

TYCO Series TY-B |
|
Sprinkler Type |
Decorative Glass Bulb Spray Sprinkler |
|
Response Type |
Standard Response |
|
Bulb Size |
5 mm Glass Bulb |
|
Coverage |
Standard Coverage |
|
Applications |
Banks, Hotels, Shopping Malls, Factories, Refineries, Chemical Plants |
|
Hazard Classification |
Light, Ordinary & Extra Hazard |
| K-Factor Options |
Available Ratings |
2.8, 5.6, 8.0 |
|
8.0 K Models |
Upright (TY4151), Pendent (TY4251) |
| Connection Details |
Thread Size |
1/2″ NPT or 3/4″ NPT |
| Recessed Option |
Model |
TY4215 (Recessed Pendent) |
|
Escutcheon Type |
Two-Piece Style 10 (1/2″ NPT) or Style 40 (3/4″ NPT) |
|
Adjustment Range |
1/2″ Recessed or 3/4″ Total Adjustment |
|
Benefit |
Reduces pipe cutting accuracy requirement |
| Intermediate Level Option |
Shield |
Model S2 Shield (For Intermediate Protection) |
| Temperature Ratings & Color Codes |
135°F (57°C) |
Orange |
|
155°F (68°C) |
Red |
|
175°F (79°C) |
Yellow |
|
200°F (93°C) |
Green |
|
286°F (141°C) |
Blue |
|
360°F (182°C) |
Mauve |
| Performance |
Max Working Pressure |
As per TYCO Standard Listing |
|
Installation |
Upright, Pendent, Recessed & Intermediate Configurations |
| Approvals & Listings |
Compliance |
Designed per applicable NFPA Standards |
|
Certification |
UL Listed / FM Approved (Model Dependent) |
