| Product Overview |
Series |
TYCO Series TY-B |
|
Models |

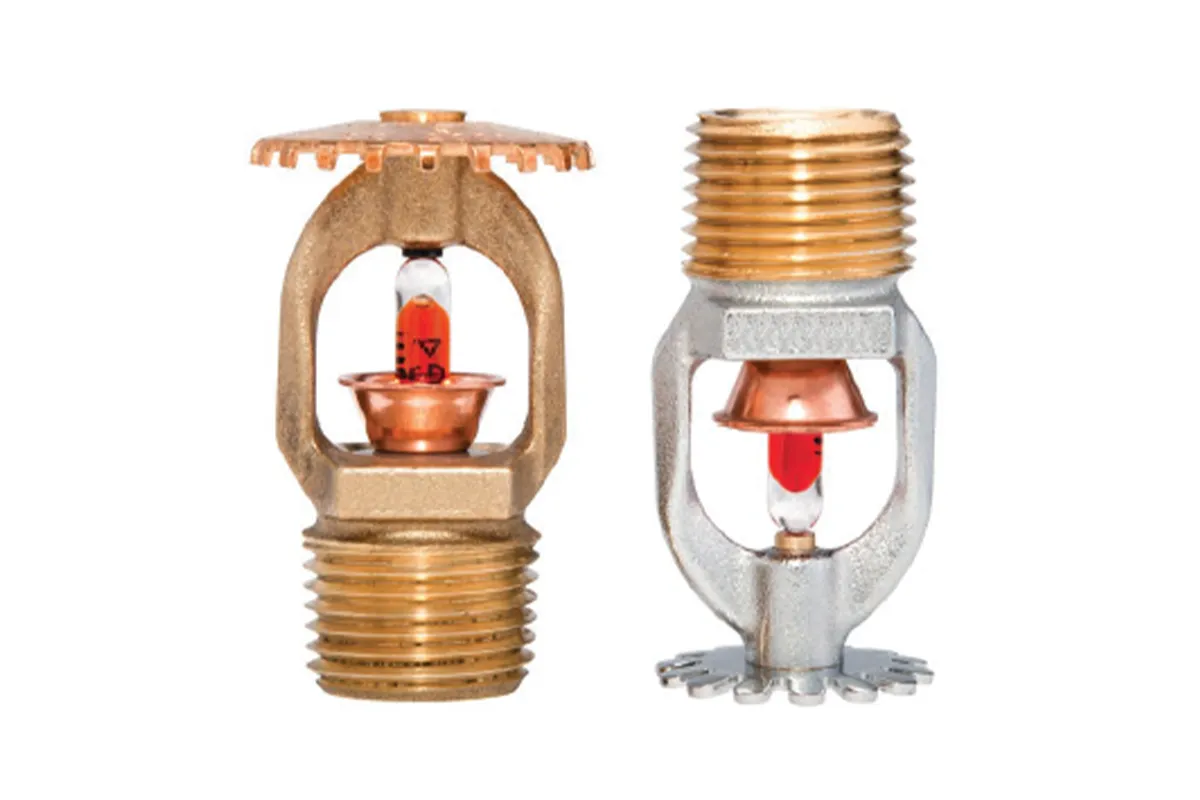

TY315 (Upright), TY325 (Pendent) |
|
Type |
Decorative Glass Bulb Spray Sprinkler |
|
Response |
Standard Response |
|
Bulb Size |
5 mm Glass Bulb |
|
Coverage |
Standard Coverage |
|
Application Areas |
Banks, Hotels, Shopping Malls, Factories, Refineries, Chemical Plants |
|
Hazard Class |
Light, Ordinary & Extra Hazard |
| Hydraulic Performance |
K-Factor |
5.6 GPM/psi½ (80.6 LPM/bar½) |
|
Maximum Working Pressure |
175 psi (12.1 bar) |
|
UL Maximum Pressure |
250 psi (17.2 bar) – UL Listing Only |
| Connection Details |
Thread Size |
1/2″ NPT |
| Recessed Options |
Applicable Model |
TY325 Recessed Pendent |
|
Style 15 Escutcheon |
Up to 5/8″ (15.9 mm) Adjustment |
|
Style 20 Escutcheon |
Up to 1/2″ (12.7 mm) Adjustment |
|
Benefit |
Reduces pipe cut accuracy requirement |
| Temperature Ratings & Bulb Colors |
135°F (57°C) |
Orange |
|
155°F (68°C) |
Red |
|
175°F (79°C) |
Yellow |
|
200°F (93°C) |
Green |
|
286°F (141°C) |
Blue |
|
360°F (182°C) |
Mauve |
| Finish Options |
Available Finishes |
Natural Brass, Chrome Plated, Polyester Coated* |
| Accessories |
Guards & Shields |
Refer TFP780 |
|
Intermediate Level |
Refer TFP352 |
| Approvals |
Certification |
Refer Table A (UL/FM as applicable) |
