| Product |

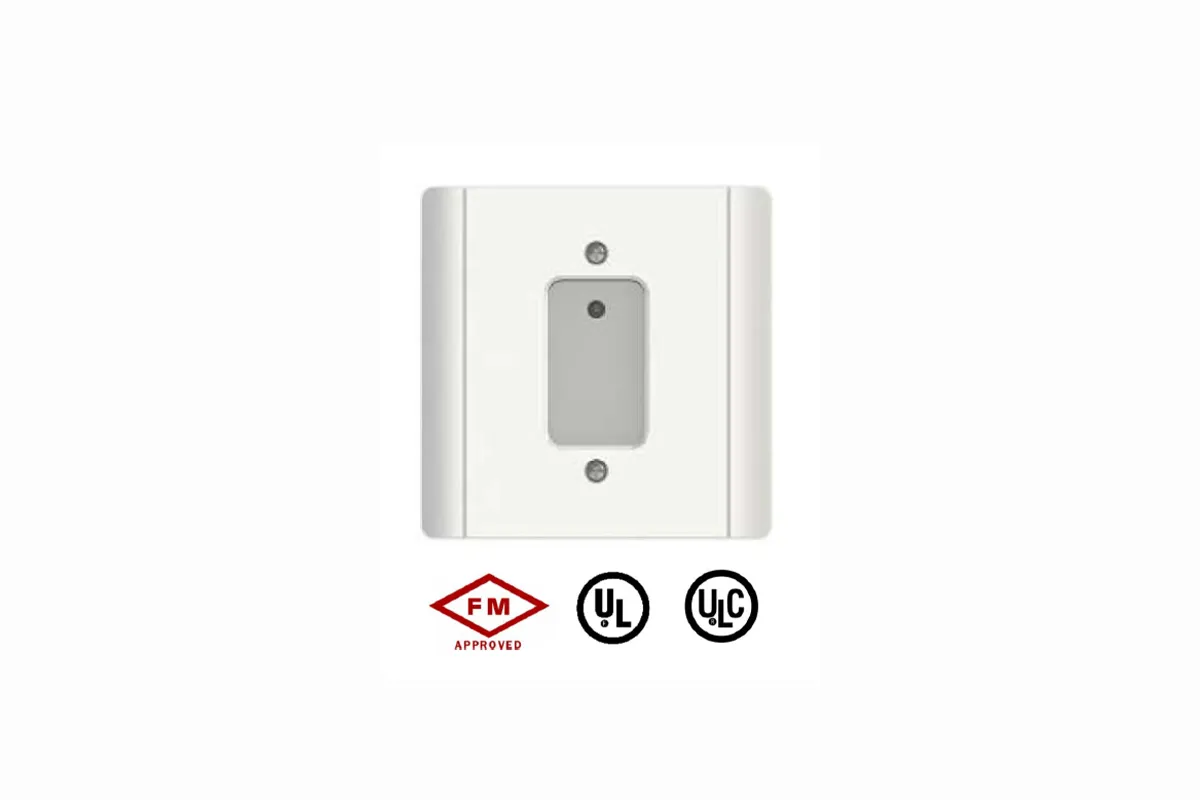

FW811 Input Module |
| Type |
Intelligent Addressable Single Contact Input Module |
| Function |
Monitors 1 contact (Alarm / Supervisory / Trouble / Monitor configurable) |
| Addressing |
Occupies 1 address on SLC/DCL |
| Certification |
UL 864, ULC-S527 & FM Listed |
| Nominal Voltage |
24 VDC |
| Voltage Range |
15 – 28 VDC |
| Standby Current |
0.17 mA |
| Alarm Current |
0.79 mA |
| Max Line Impedance |
25 Ω |
| Max Ground Impedance |
6.6 KΩ |
| Compatible EOL Resistor |
FW421 (10KΩ) |
| LED Indication |
Steady ON (Alarm/Event), Latched/Non-latched selectable |
| Operating Temperature |
0°C to 49°C (32°F to 120°F) |
| Humidity |
0 – 93% RH |
| Mounting |
FW800 / FW801 box |
| Dimensions |
120 × 120 × 45 mm |
| Weight |
247 g (with backbox) |
| Wiring Gauge |
12 – 18 AWG |
