Fabric
|
PU-coated glass fabric, 690 g/m2, color grey, Non – Flammable according to DIN 4102-1, A2.
|
|---|---|
|
Unwind
|
Controlled Gravity Descend
|
|
Windup
|
24 VDC motor integrated with planetary gear
|
|
Installation
|
Ceiling or wall mounted
|
|---|---|
|
System dimensions
|
System width ≤ 25000 mm Unwinding length ≤ 12000 mm
|
|
Head box
|
GI Sheet 1.2 mm powder-coated
|
|
End section
|
GI Sheet 2.5 mm powder-coated
|
|
Classification/Standard
|
UL 10D
|
|
Side guides (SFS)
|
Steel 2.5 mm powder-coated, dimensions (Wx D) 50 x 100 mm. The curtain material will be delivered with a restrain system. In this way, it prevents the curtain material being pulled out sideways from the tracks in case of deflection by pressurization (e.g. excess pressure by fire.)
|
Safety Source Ltd is a trusted supplier of high-quality Fire Smoke Curtain Systems in Bangladesh, providing advanced smoke containment solutions for commercial, industrial, and high-rise buildings.
Our Automatic Fire Smoke Curtain is designed to prevent smoke spread during fire emergencies, protect escape routes, and improve building evacuation safety.
📍 Available in Dhaka
🚚 Delivery & project support across Bangladesh

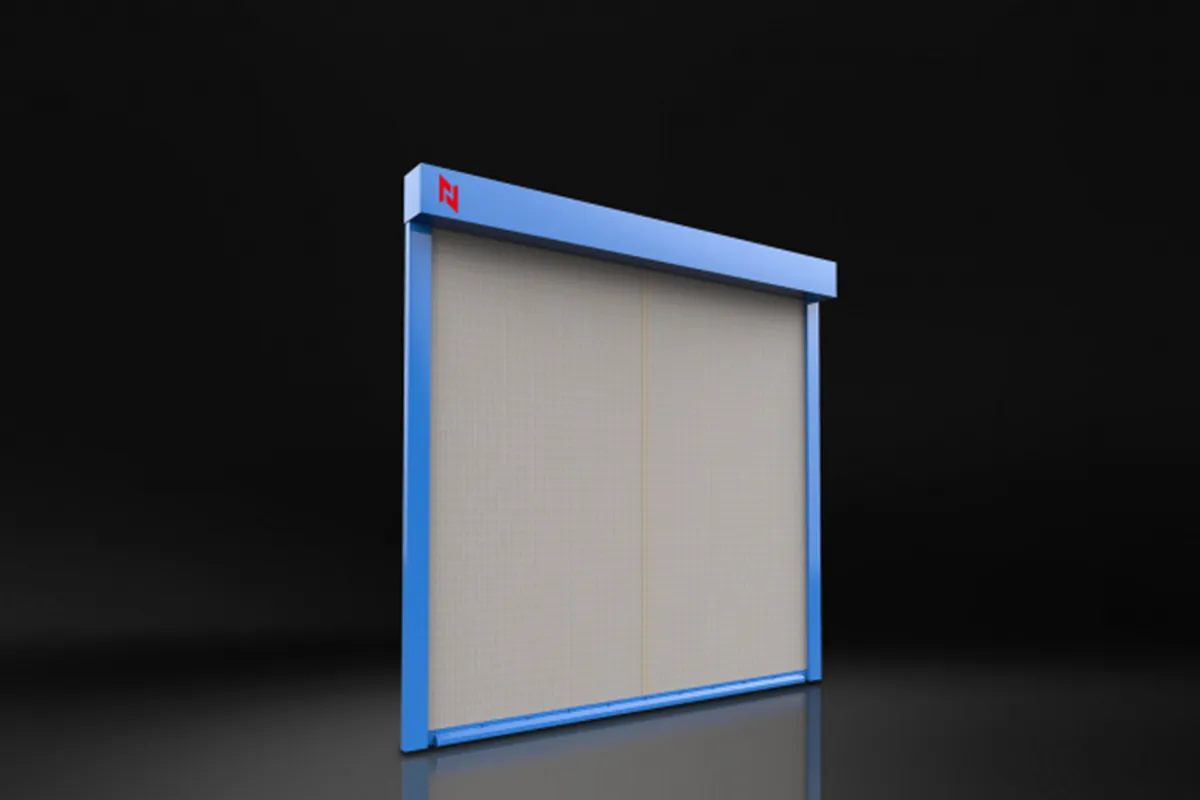

A Fire Smoke Curtain is a motorized fire-resistant fabric barrier that remains hidden inside the ceiling during normal conditions. When the fire alarm system activates, the curtain automatically descends to create a smoke and fire compartment.
It is essential for modern buildings where traditional fire doors are not suitable for open areas such as:
Atriums
Escalator openings
Shopping malls
Warehouse loading zones
✔ Automatic drop system (motorized operation)
✔ Fire-resistant high-performance fabric
✔ Compact concealed ceiling design
✔ Fire alarm system integration
✔ Custom sizes available
✔ Professional installation support
✔ Suitable for factory and commercial compliance
Our Fire Smoke Curtain systems are available with:
60 Minutes Fire Rating
120 Minutes Fire Rating
Custom project-based fire rating
Designed to meet international fire safety standards and support Bangladesh Fire Service compliance requirements.
Safety Source Ltd supplies Fire Smoke Curtains for:
Shopping Mall & Super Market
Commercial High-Rise Buildings
Garments & Textile Factories
Warehouse & Industrial Buildings
Hospitals & Educational Institutions
Airport & Metro Projects
Large Open Steel Structures
Product Type: Automatic Fire Smoke Curtain
Operation: Motorized
Activation: Fire Alarm Integrated
Material: Fire-Resistant Fabric
Installation: Concealed Ceiling Mount
Power Supply: Standard Electrical
✔ Experienced Fire Safety Supplier in Bangladesh
✔ Competitive Project Pricing
✔ Complete Fire Protection Solutions
✔ Technical Support for Engineers & Contractors
✔ Fast Delivery Across Bangladesh
✔ Reliable After-Sales Support
Safety Source Ltd provides complete fire safety systems including:
Fire Alarm System
Fire Rated Doors
Fire Hydrant System
Fire Retardant Paint
Fire Extinguishers
Smoke Curtains
The price depends on:
Required width & drop height
Fire rating specification
Motor type & control system
Installation requirement
📞 Contact Safety Source Ltd today for the latest Fire Smoke Curtain price in Bangladesh and project quotation.
Price varies based on size and fire rating. Contact Safety Source Ltd for best project quotation.
Yes, it automatically drops when the connected fire alarm system activates.
Yes, it is widely used for industrial and commercial fire safety compliance.
Yes, Safety Source Ltd provides supply and installation support.
Ensure maximum smoke containment and fire safety in your building.
