| Product Overview |
Product Name |

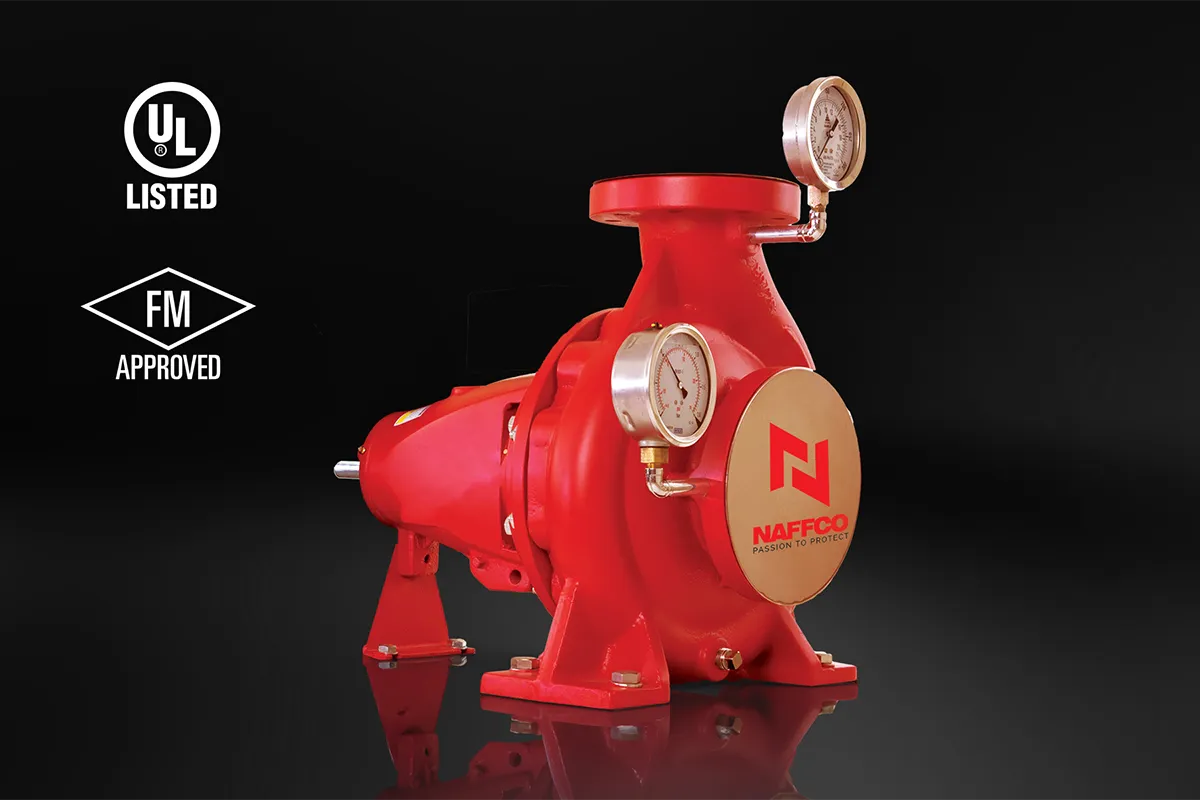

End Suction Fire Pump |
|
Series |
NF-E |
|
Pump Type |
Horizontal End Suction |
|
Application |
Fire Sprinkler, Hydrant & Hose Reel Systems |
| Working Principle |
Operation |
Converts Mechanical Energy to Hydraulic Energy |
|
Mechanism |
High-Speed Rotating Impeller Creates Centrifugal Force |
|
Flow Process |
Liquid Drawn at Low Pressure & Discharged at High Pressure |
| Standards & Certification |
Performance Standard |
NFPA 20 |
|
Certification |
UL Listed / FM Approved (Certified Models) |
|
DIN Compliance |
DIN 24255 (NE Series) |
| Performance Range |
Flow Rate |
50 – 2500 US GPM** |
|
Pressure Rating |
3.4 – 15.4 Bar** |
|
Speed Rating |
2900 – 3550 RPM** |
|
Capacity Limit |
Suitable up to 750 US GPM (Horizontal End Suction Standard Config.) |
| Driver Options |
Electric Motor |
NFPA Compliant |
|
Diesel Engine |
Emergency Backup Power |
| Testing & Quality |
Factory Testing |
Hydrostatic & Operation Run Test as per NFPA 20 |
|
Electrical Testing |
Motors & Controllers Tested per NFPA Standards |
|
Fabrication |
Complete In-House Manufacturing |
| Installation Advantages |
Space Requirement |
Compact – Ideal for Narrow Pump Rooms |
|
Unit Responsibility |
Complete Fire Pump Package Supply |
|
Accessories |
Optional Additional Accessories Available |
| Service & Support |
Warranty |
1 Year (Standard Terms & Conditions) |
|
Services Offered |
Engineering Assistance, Field Start-Up & Maintenance |
| Applications |
|
Commercial Buildings |
|
|
Industrial Facilities |
|
|
High-Rise Buildings |
|
|
Warehouses & Factories |
