| Code |

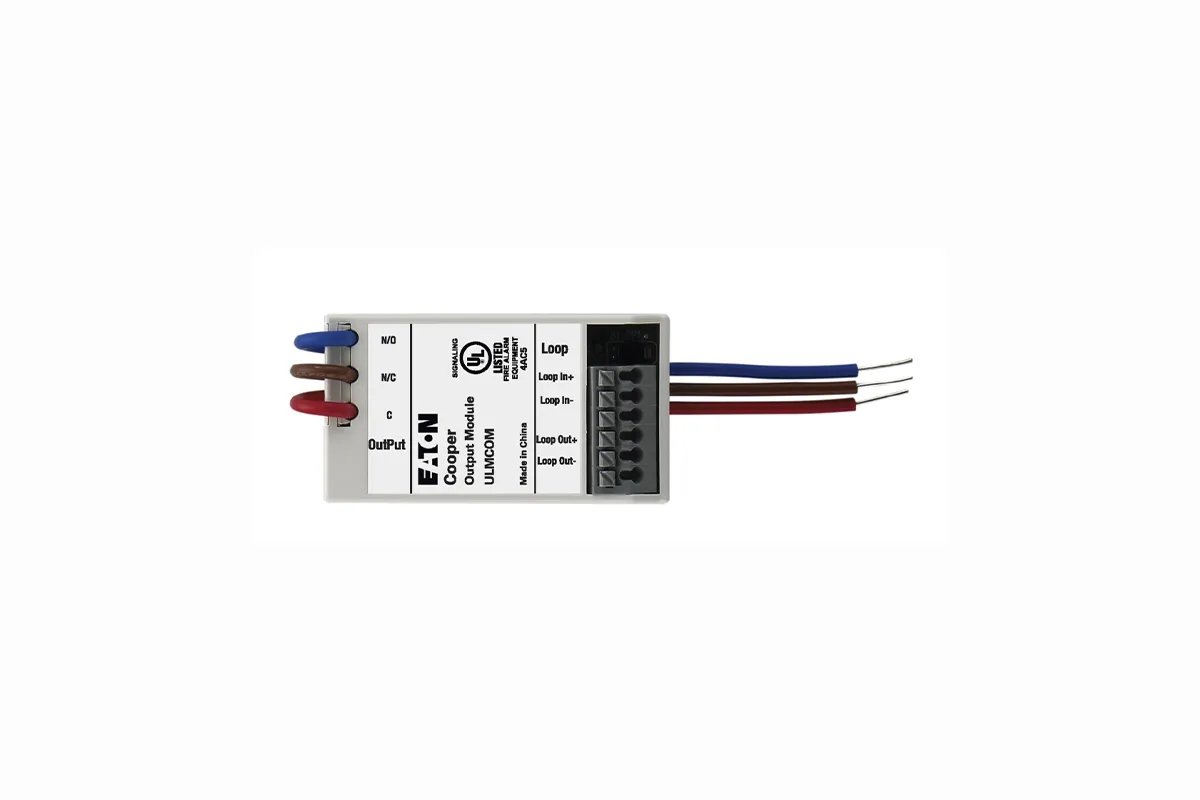

ULMCOM / ULMCOM-S |
| Description |
UL Intelligent Addressable Single Channel Output Unit |
| Application |
HVAC control, plant shutdown, fire door closure, low-voltage switching |
| Standard |
UL 864 (9th Edition) |
| SLC Type |
Style 7, Class A (Supervised, Power Limited) |
| SLC Current |
0.322 mA (Max) |
| Output Relay Type |
Non-latching, Supervisory Programmable |
| Switching Voltage |
24 – 30 VDC |
| Contact Rating |
1A Resistive (pf=1 Max) |
| Max Line Impedance |
16Ω |
| Power Factor |
1 |
| Max Devices per Loop |
20 Units |
| Operating Temperature |
0°C – 49°C |
| Humidity |
0 – 93% RH (Non-condensing) |
| Dimensions (H×W×D) |
65 × 35 × 18.5 mm |
| Weight |
0.05 kg |
| Ingress Protection |
IP40 |
| Compatibility |
Suitable for Eaton UL Fire Systems |
