| System Type |

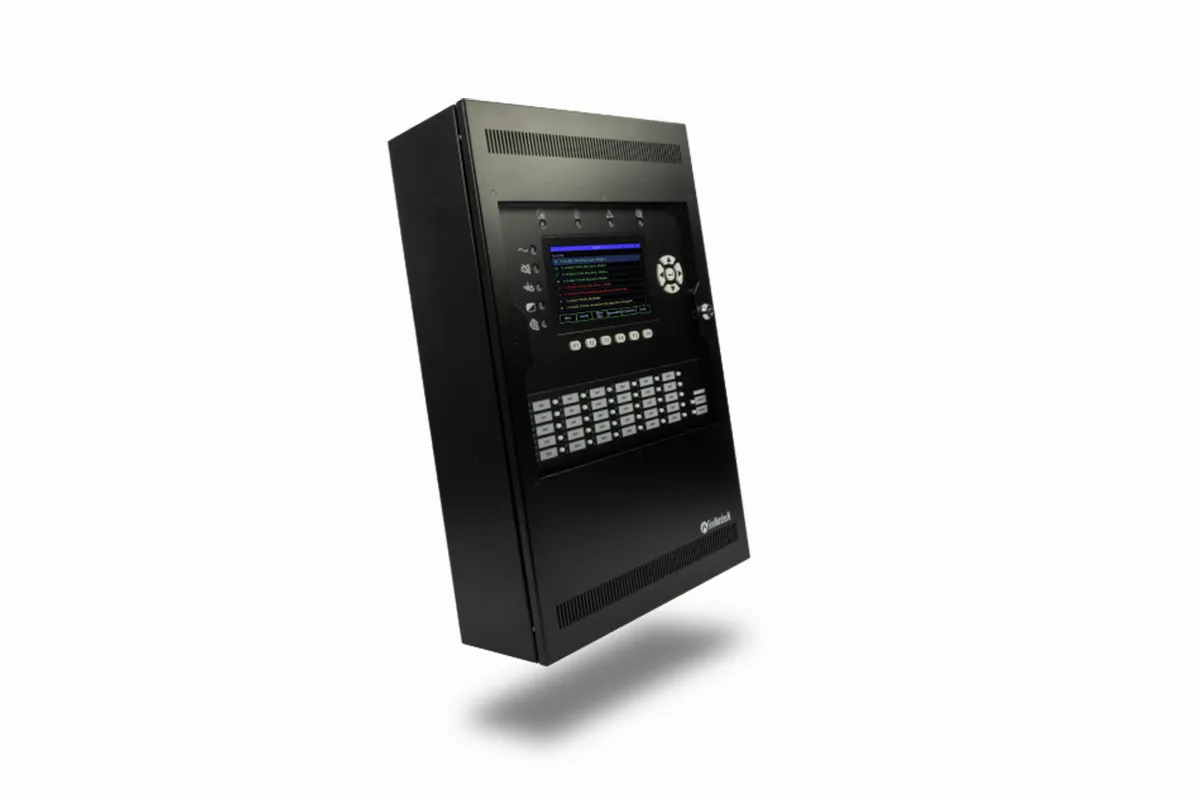

Intelligent Addressable Fire Alarm Control Panel |
| SLC Capacity |
Up to 9 SLC loops (252 devices per loop) |
| Total Addressable Points |
Up to 2,200 devices |
| NAC Circuits |
4 onboard (expandable to 12), Class A/B |
| NAC Current Capacity |
10A |
| Networking |
Up to 99 panels (Class B) / 31 panels (Class A) |
| Display |
7″ Color LCD, 800 × 480 resolution (8-line display) |
| LED Indicators |
12 status LEDs + 40 zone LEDs |
| Event Storage |
1,000 alarm events + 5,000 non-alarm events |
| Programming |
PC software, front panel, USB firmware upgrade |
| Addressing |
Automatic sequential addressing |
| Supported Devices |
FW Series detectors, modules & manual stations |
| Relay Outputs |
Form C (Alarm, Trouble, Supervisory, Monitor) |
| Interfaces |
RJ45 & RS232 for third-party monitoring |
| Operation Modes |
Positive Alarm Sequence & Two-Stage operation |
| Security |
4-level password protection |
| Battery Support |
2 × 18Ah (in cabinet), charges up to 55Ah |
| Mounting |
Multiple wiring knockouts & ventilation design |
| Additional Features |
Remote annunciator networking, modular design |
