| Specification | Details |
|---|---|

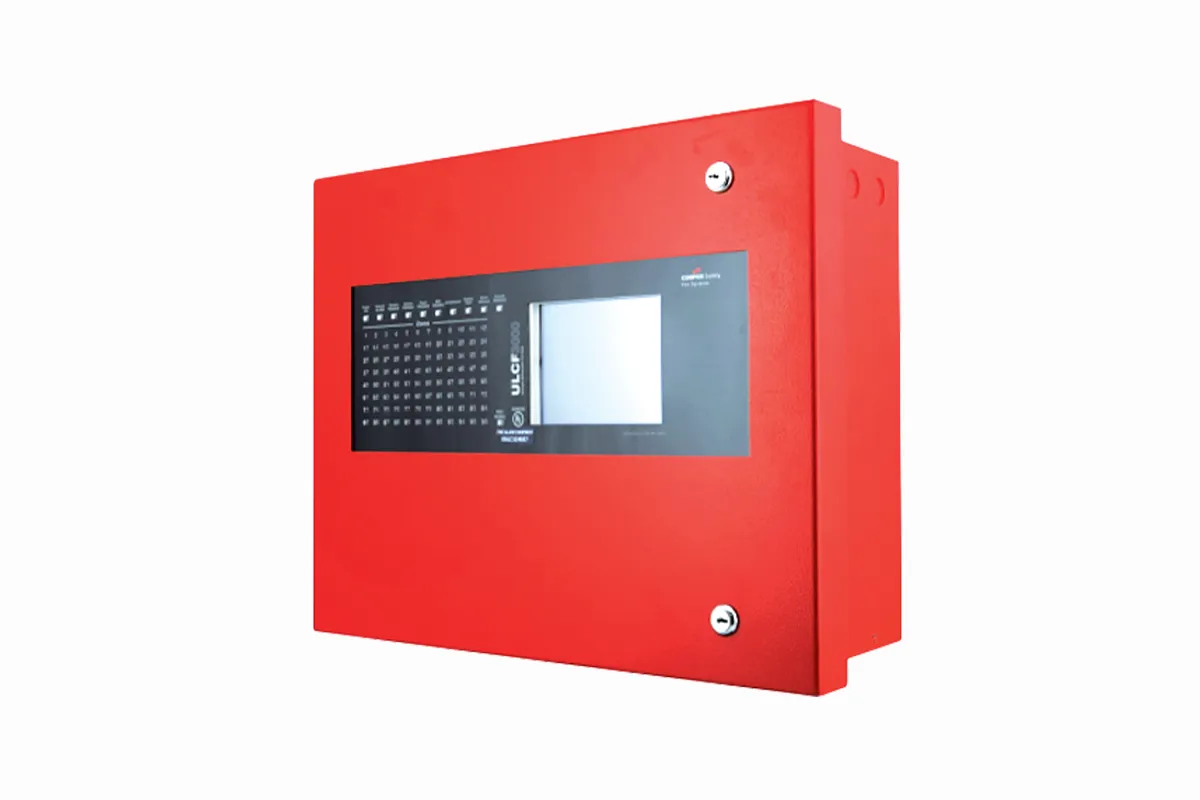

| Product | Eaton ULCF3000 / ULCF3000RM |
| Type | UL Intelligent Addressable Fire Alarm Control Panel |
| Standards | UL 864 (9th Edition) |
| Mounting | Wall or Rack Mounted |
| Operation | Standalone or Networked |
| Addressing | Soft Addressing (Automatic) |
| SLC Loop | Class A, 24VDC, 500mA |
| NAC Output | 24VDC, 0.75A (Std.), 0.5A (Sync Module) |
| Power Supply | 120/240VAC Primary, 24VDC Battery Backup |
| IP Rating | IP30 |
| Application | Industrial & Commercial Fire Alarm Systems |
| Specification | Details |
|---|---|
| Model | ULCF3000 / ULCF3000RM |
| Certification | UL 864 (9th Edition) |
| Primary Supply | 120/240VAC, 60Hz, 2.0A (Supervised) |
| Secondary Supply | 24VDC Battery |
| Battery Capacity | Up to 12Ah (Supervised) |
| Battery Charge Current | 1.0A (Max) |
| SLC Type | Style 7, Class A (Addressable Loop) |
| SLC Voltage / Current | 24VDC / 500mA Max |
| SLC Line Impedance | 50Ω Max |
| NAC Type | Class B, Style Y |
| NAC Output (Standard) | 24VDC, 0.75A Max |
| NAC Output (Sync Module) | 24VDC, 0.5A Max |
| Relay Outputs | Alarm & Trouble Contacts (30VDC) |
| Auxiliary Relay | AC Trouble, 30VDC, 1A |
| Network SLC | 5VDC, 100mA Max |
| Programming | Advanced Cause & Effect, Network Configurable |
| Protection | Power Limited & Supervised Circuits |
| IP Rating | IP30 |
| Compatibility | Eaton UL Fire Systems |
