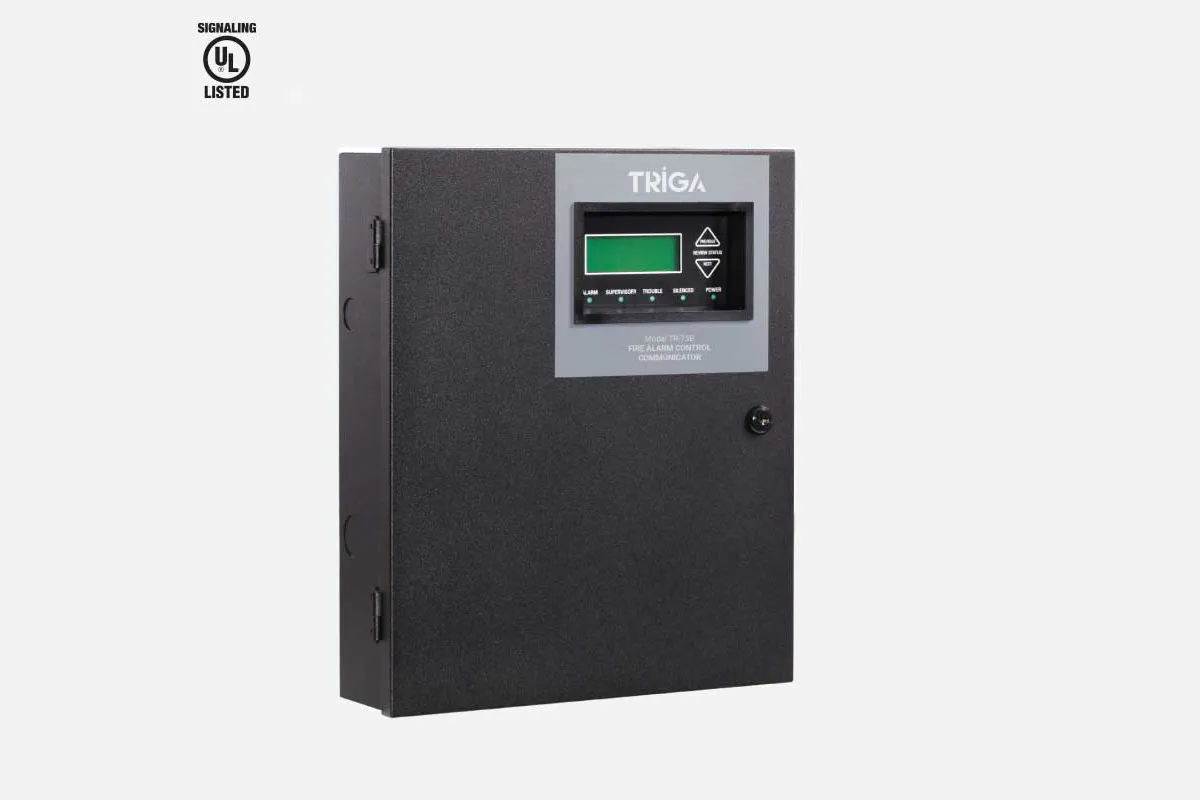

TR-75R (red) and TR-75B (black) are intelligent addressable fire alarm control panels (FACP). TR-75 has a single line circuit (SLC) loop for connecting addressable detectors, which can support 75 TRIGA sensors and modules per loop. For TRIGA devices the overall point capacity to a maximum of 150 points per panel.
TR-75 has the interconnection capability for up to 32 panels. The system has two modes of operation, multiple panels covering one larger building, or multiple independent buildings. To network panels together use the TR-NIC network interface card. Copper wire or fiber optic cable panel connectivity can be used within the same networked system.
The TR-75 supports a variety of devices, including TR-RD2R, TR-RD1R remote annunciator, TR-5824 serial/parallel printer interface module (for printing system reports), TR-RPS1 power module, and TRIGA SWIFT wireless devices.
PHYSICAL
Overall Dimensions: 15.12”H x 12.71″W x 3.33” D
Shipping Weight: 15 lbs. Color: Red or Black
ENVIRONMENTAL
Operating Temperature: 32°F to 120°F (0°C to 49°C)
Humidity: 0 to 93% relative humidity (non- condensing)
ELECTRICAL
TR-75 Primary AC: 240 VAC @ 60 Hz, 1A Total
Total Accessory Load: 2.5A @ 27.4VDC power- limited
Standby Current: 165mA Alarm Current: 310mA
Battery Charging Capacity: 7 to 35AH
Battery Size: 7AH max. allowed in control panel cabinet.
Larger capacity batteries can be housed in RBB accessory cabinet.
ORDERING INFORMATION
TR-75R: Intelligent Fire Alarm Control Panel. Red Cabinet.
TR-75B: Intelligent Fire Alarm Control Panel Black Cabinet.
SBUS ACCESSORIES
TR-RD2R, TR-RD2G, TR-RD1R, TR-RD1G:
Remote annunciators
TR-6815: Signal Line Circuit (SLC) Expander
TR-RPSI: Power Supply
TR-5824: Serial/Parallel Module
TR-5880: LED I/O Module
TR-5865-3 or TR-5865-4: LED Annunciator
TR-5883: Relay Interface
MISCELLANEOUS ACCESSORIES
HFSS: Software Suite. Provides programming, upload/download and event reporting.
RBB: Remote Battery Box Cabinet. Use for backup batteries up to 35AH.
Dimensions: 16″W x 10″H x 6″D
TR-NIC: Network Interface Card
TR-FML: Multi Mode Fiber Card
TR-FSL: Single Mode Fiber Card
Triga’s TR-PHOTO-W Series intelligent plug-in smoke detectors are designed for both performance and aesthetics. TRIGA SMOKE DETECTOR has new modern profile for improved aesthetics. A new modern, sleek, contemporary design and enhanced optical sensing chamber is engineered to sense smoke produced by a wide range of combustion sources in accordance with more stringent code standards. TR-PHOTO-W has Stable communication technique with noise immunity.
The TR-PHOTO-W Series detector sensitivity can be programmed in the control panel software. TRIGA SMOKE DETECTOR has built-in functional test switch activated by external magnet. Sensitivity is continuously monitored and reported to the panel. Point ID capability allows each detector’s address to be set with rotary, decimal address switches, providing exact detector location for selective maintenance when chamber contamination reaches an unacceptable level. TR-PHOTO-W plugs into separate base for ease of installation and maintenance.
Low standby current, Two-wire SLC connection, Optional remote, single- gang LED accessory, Dual LED design provides 360° viewing angle, Remote test feature from the panel- This are the common advantages of TRIGA SMOKE DETECTOR.
Other FEATURES
PHYSICAL Height: 2.0″ (51mm) installed in TR-B300-6 base
Diameter: 6.2″ (156mm) installed in TR-B300-6
base 4.1″ (104 mm) installed in TR-B501 base
Weight: 3.4 oz (95 g)
ENVIRONMENTAL
Operating Temperature range:
Photo: 32°F to 122°F (0°C to 50°C)
Photo with Thermal: 32°F to 100°F (0°C to 38°C)
Thermal Ratings: Fixed Temperature Set point:
135°F (57°C)
Sensitivity: UL Applications: 0.5% to 4.0% per
foot obscuration.
ELECTRICAL RATINGS
Voltage Range: 15 to 32VDC peak
Operating Current @ 24VDC: 200μA (one communication every 5 seconds with green LED blink on communication)
Maximum Current: 4.5mA @ 24VDC (one communication every 5 seconds with amber LED solid on).
COMPATIBILITY
The TR-PHOTO-W series detectors are compatible with the following Triga Series
FACPs:

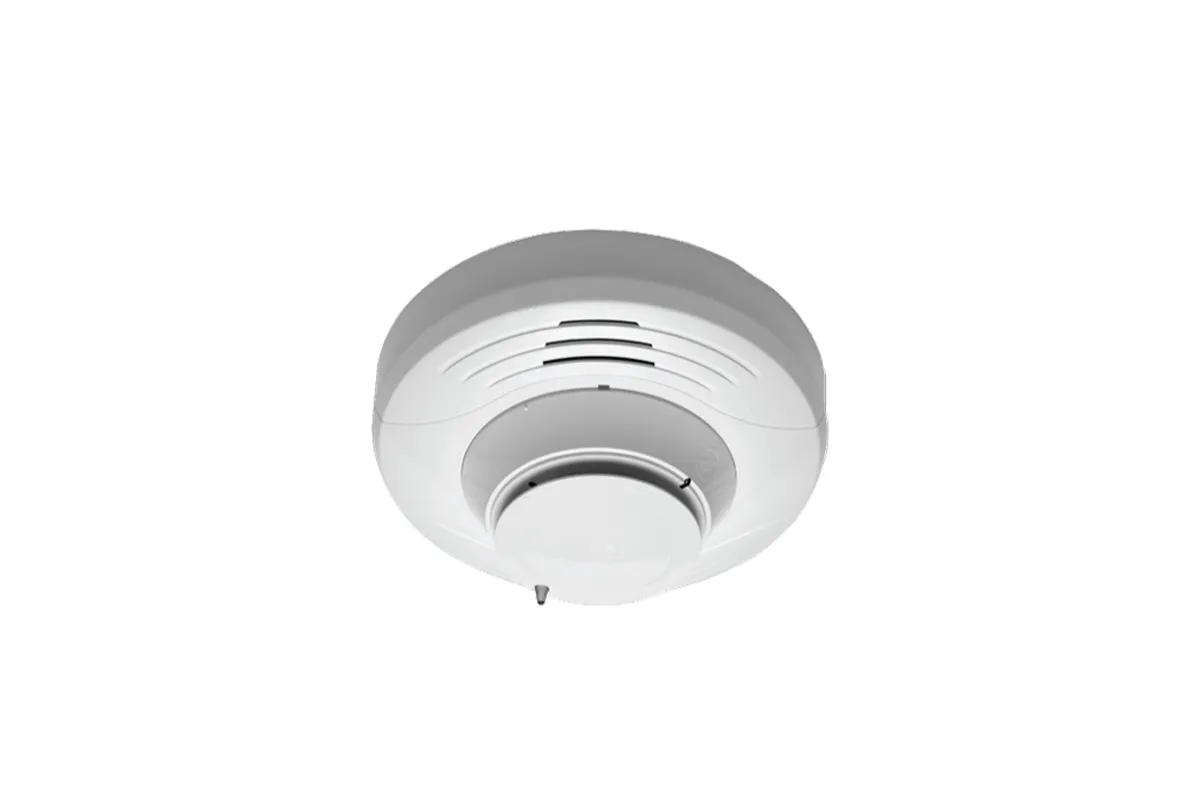

TR-PTIR-W and TR-PTIR-IV are intelligent, multi-criteria detectors that combine photoelectric, thermal, and infrared (PTIR) sensors in one unit to sense multiple components of a fire. This approach enables enhanced sensitivity to real fire with heightened immunity to nuisance particulates.
Multiple sensors and communication can greatly reduce nuisance alarms compared to single sensing methods. Sophisticated algorithms maximize the advantages of all four sensor types creating our best detection strategy o“ering heightened immunity to nuisance particulate and enhanced sensitivity to real fire.
This ability to reject certain nuisance alarm triggers, such as theater smoke, supports the use of the detector in applications where moderate to heavy nuisance conditions exist that might cause single sensing detectors to trigger a false alarm.
The PTIR detector meets both UL 268 7th edition and UL 521 listing requirements and can indicate distinct smoke and heat alarms. This dual nature supports a local alarm setting for photoelectric detection and a general evacuation setting based on thermal detection. This can minimize work interruptions in multi-level buildings.
PHYSICAL/OPERATING
ELECTRICAL SPECIFICATIONS
CO MONITORING UL STANDARD REFERENCE
Alarm thresholds (in parts per million) are as follows for:
STANDARDS
Per UL standard 2075, the IDP-FIRE-CO-W and IDP-FIRE-CO-IV have been tested to the sensitivity limits defined in UL Standard 2034.
UL Standard: UL 268 7th Edition
AGENCY LISTINGS AND APPROVALS
The listings and approvals below apply to the TR-FIRE-CO-W and TR-FIRE-CO-IV. In some cases, certain modules may not be listed by certain approval agencies, or listing may be in process. Consult the factory for the latest listing status.
UL Listed
FM approved
ORDERING INFORMATION
BASES
ACCESSORIES
TR-RA100Z: Remote LED annunciator

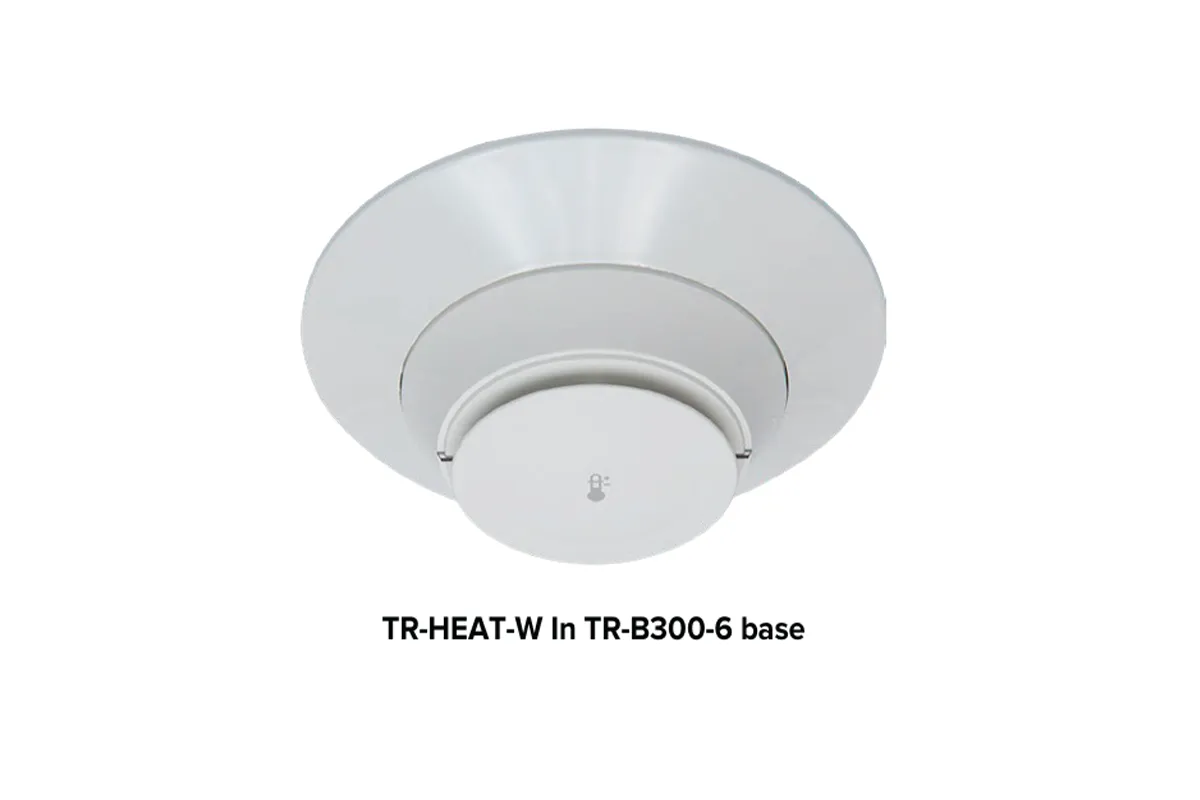

Triga TR-HEAT-W Series intelligent thermal detectors are designed for both performance and aesthetics. A new modern, sleek, contemporary design and advanced thermal technologies make the TR-HEAT-W Series ideal for both system operation and building design. The point ID address, set using rotary decimal switches, provide specific detector locations. The series includes a 135°F/57°C fixed temperature, rate-of-rise and a 190°F/88°C fixed high-temperature detectors. These thermal detectors provide e˜ective, intelligent property protection in a variety of applications.
PHYSICAL
ENVIRONMENTAL
ELECTRICAL RATINGS
COMPATIBILITY
The TR-HEAT-W series detectors are compatible with the following Triga Series
FACPs:

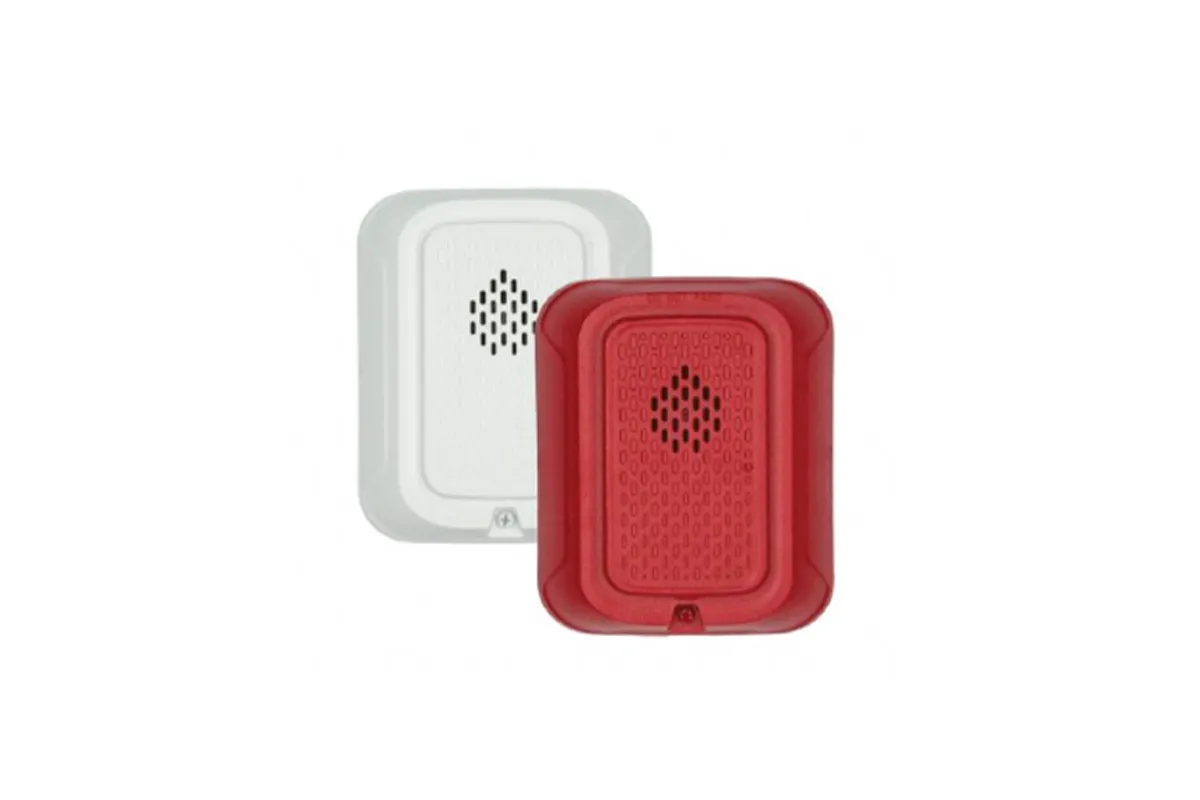

These notification appliances offer a wide range of audible devices for life safety notification. Our horns and chimes come with 10 field selectable tone and volume combinations for a wide range of systems. Horns come in two attractive mounting designs, standard and compact. They are intended for indoor applications and approved for wall and ceiling mount installations.
These horns are public mode notification appliances intended to alert occupants of a life safety event. Chimes are private mode notification appliances used to alert trained personnel to investigate possible emergency situations and take appropriate action. Both the horn and the chime are listed to ANSI/UL 464 requirements. These notification appliances are designed to be used in 12 VDC, 24VDC, or 24V FWR (full wave rectified) systems. AV devices can be activated by a compatible Triga fire alarm control panel or power supply. The power from these supplies can be either regulated or coded (pulsing) power supplies. Refer to the appropriate fire alarm control panel manufacturer or power supply for more information. These wall horns and chimes come enabled with System Sensor synchronization protocol which requires connections to a power supply capable of generating the System Sensor synchronization pulses, a FACP NAC output configured to System Sensor synchronization protocol, or the use of MDL (3) module to generate the synchronization protocol.
Standard Operating Temperature: |
32°F to 120°F (0°C to 49°C) |
|---|---|
Humidity Range:
|
10 to 93% Non-condensing
|
Nominal Voltage:
|
Regulated 12VDC or regulated 24DC/FWR
|
Operating Voltage Range (includes fire alarm panels with built in sync):
|
8 to 17.5V (12V nominal) or 16 to 33V (24V nominal)
|
Operating Voltage with MDL3 Sync Module:
|
8.5 to 17.5V (12V nominal) or 16.5 to 33V (24V nominal)
|
Input terminal wire gauge:
|
12 to 18 AWG
|

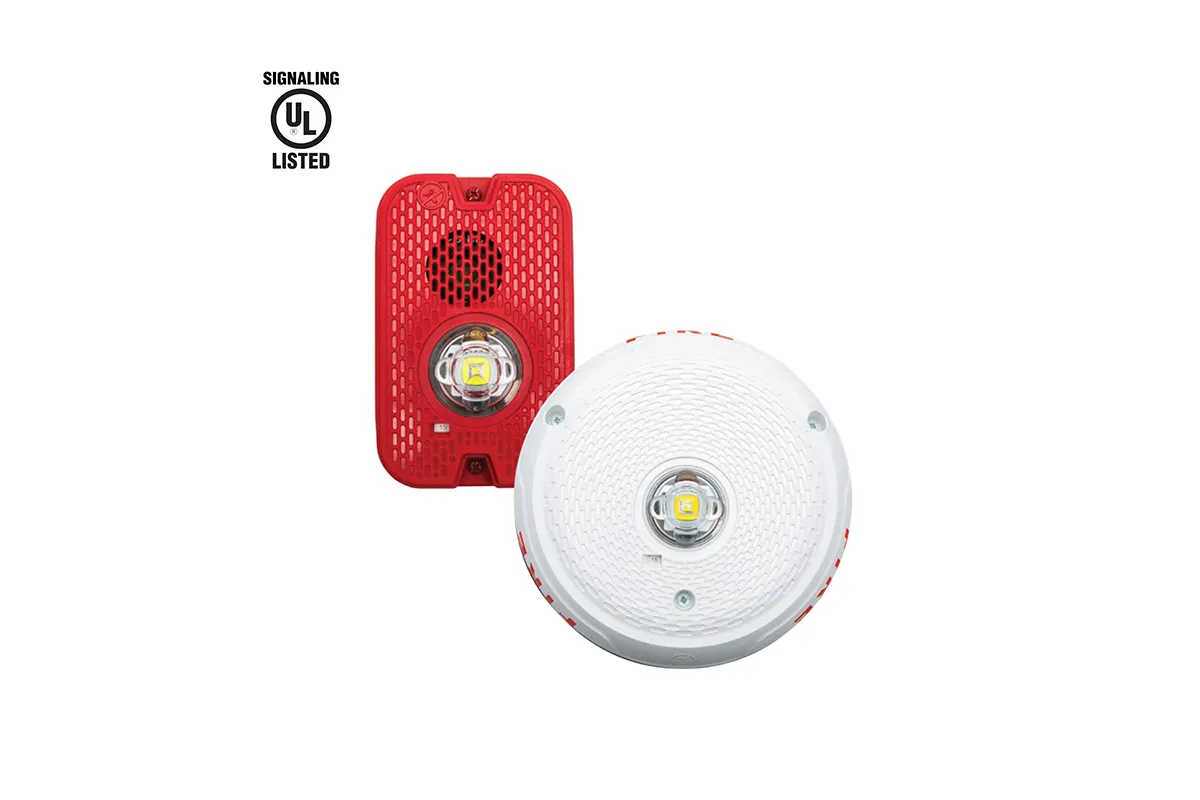

TRIGA LED Outdoor platforms offer the most versatile and easy-to-use line of Weatherproof Horns, Horn Strobes, and Strobes that can meet virtually any application requirement, including indoor, outdoor, wet, dry, and washdown environment applications in temperatures from -40°F to151°F.
TRIGA LED Outdoor appliances are NEMA 4X and IP56 rated without having to seal the back box. Additional caulk or sealant are not required on the back box for a faster, cleaner installation. The L-Series platform offers a modern aesthetic across the Indoor and Outdoor platform and design variations across applications: wall or ceiling mount, red or white color choices, LED colored lenses for distinctive visual signaling. In addition, installers can easily adjust appliances through field select able candela, tone, and volume selections using rotary switches. LED technology offers significantly lower current draw compared to older Xenon bulbs across a full candela range. This improves design flexibility for notification appliance circuits (NACs) while also reducing power supply requirements allowing for simpler and lower cost installations. UL listed waterproof wire nuts are provided to make the connection between the field wiring and the mounting plates. Outdoor devices ship with plastic back boxes that accommodate in-and-out wiring for daisy chaining devices. Knock-outs located on the back eliminate the need to drill holes for screw-in mounting.
LED Specifications
Physical/Electrical Specifications
Standard Operating Temperature : 32°F to 120°F (0°C to 49°C)
Humidity Range 10 to 93% non-condensing
Strobe Flash Rate 1 flash per second
Nominal Voltage, LED Strobes and Horn Strobes Regulated 24 VDC
Nominal Voltage, Horns Regulated 12 VDC or regulated 24 DC/FWR
Operating Voltage Range, LED Strobes and Horn Strobes 16 to 33 V (24 V nominal) Operating Voltage Range, Horns 8 to 17.5 V (12 V nominal) or 16 to 33 V (24 V nominal)
Input Terminal Wire Gauge 12 to 18 AWG

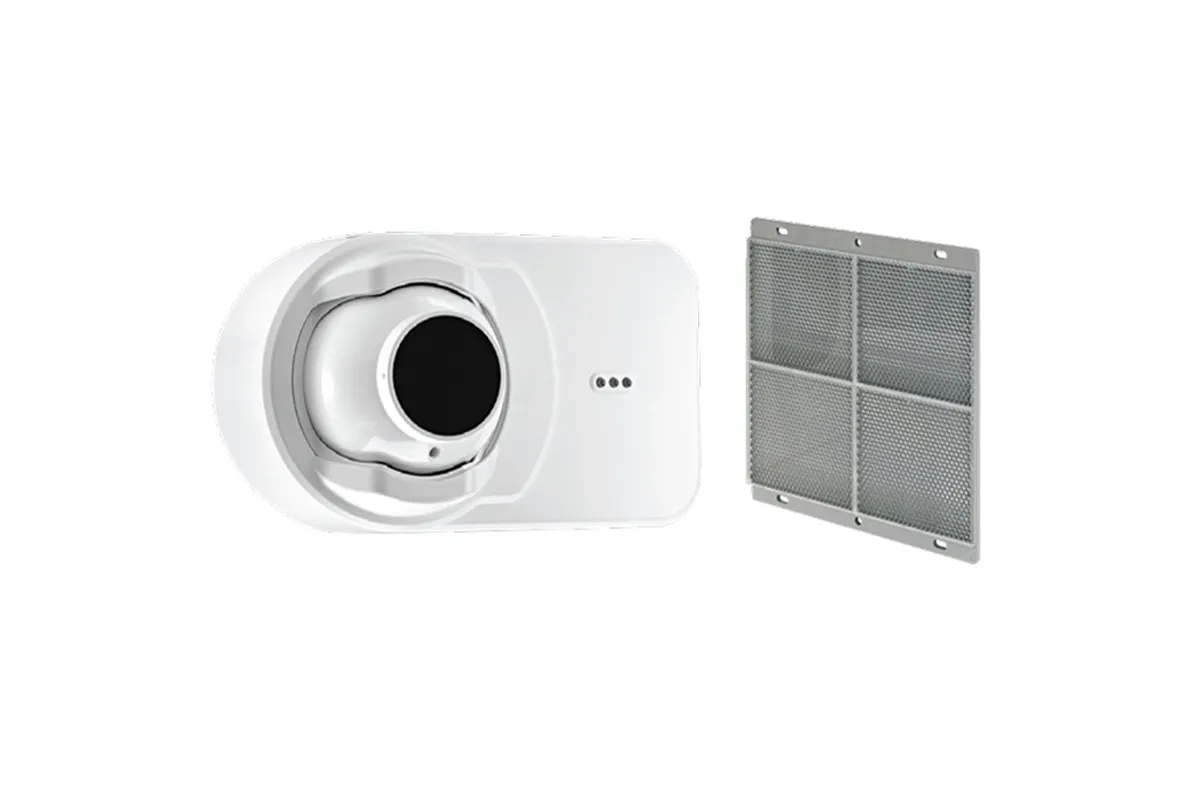

The TR-OSI-RI intelligent addressable reflector-type linear optical beam smoke detector is uniquely suited for protecting large open areas with high ceilings, where spot-type smoke detectors are difficult to install and maintain. Ideal applications are warehouses, atriums, aircraft hangers, sporting arenas and concert halls. The beam operates primarily on the principle of light obscuration using infrared. The TR-OSI-RI detector is a combined transmitter/receiver and is compatible with Triga fire alarm controls panels.
PHYSICAL/OPERATING SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
TR-OSI-RI
Operating Voltage Range:
Maximum Standby Current:
Maximum Alarm Current (LED on):
BEAMHKR
Voltage Range: 15 to 32 V
Maximum Current: 450 mA Max at 32 V
Power Consumption:
RTS151KEY
ENVIRONMENTAL SPECIFICATIONS
OPERATIONAL SPECIFICATIONS
Protection Range: 16 ft to 328 ft (5 m to 100 m)
Adjustment Angle: 20 degrees vertical, 50 degrees horizontal
Sensitivity Levels: Level 1 25%, Level 2 30%, Level 3 40%, Level 4 50%
Test/Reset Features: Local alarm test switch, local alarm reset switch, Remote test and reset switch (Compatible with RTS151 and RTS151KEY test stations), OSID-R test filter.
Smoke Detector Spacing: On smooth ceilings, 30-60 feet between projected beams and not more than one-half that spacing between a projected beam and a sidewall. Other spacing may be used depending on the ceiling height, airflow characteristics, and response requirements.

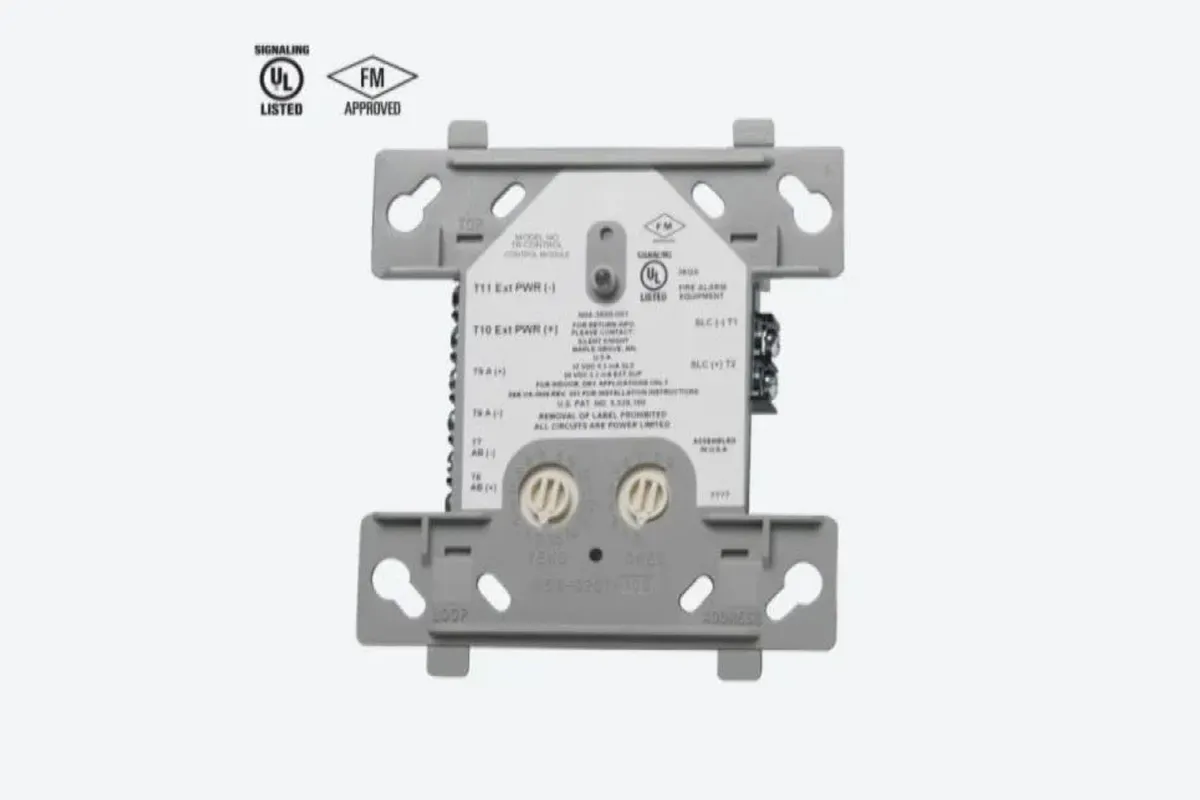

The TR-CONTROL is an addressable notification module for use with Triga Series fire alarm control panels (FACPs). The TR-CONTROL gives you the flexibility to add notification circuits wherever they are needed on a Triga FACP signaling line circuit (SLC) loop.
The TR-CONTROL provides supervised monitoring of wiring to load devices that require an external power supply to operate, such as bells, horns, and strobes. It is capable of Class B and Class A supervision.
Upon command from the FACP, the TR-CONTROL will disconnect the supervision and connect the external power supply across the load device. The disconnection of the supervision provides a positive indication to the panel that the control relay actually turned on. The external power supply is always relay isolated from the SLC loop so that a trouble condition on the power supply will never interfere with the rest of the system.
INSTALLATION
The TR-CONTROL mounts directly into a 4” square electrical box. The box must have a minimum depth of 2-1/8”. A surface mount electrical box (TR-SMB500) is available from Triga.
COMPATIBILITY

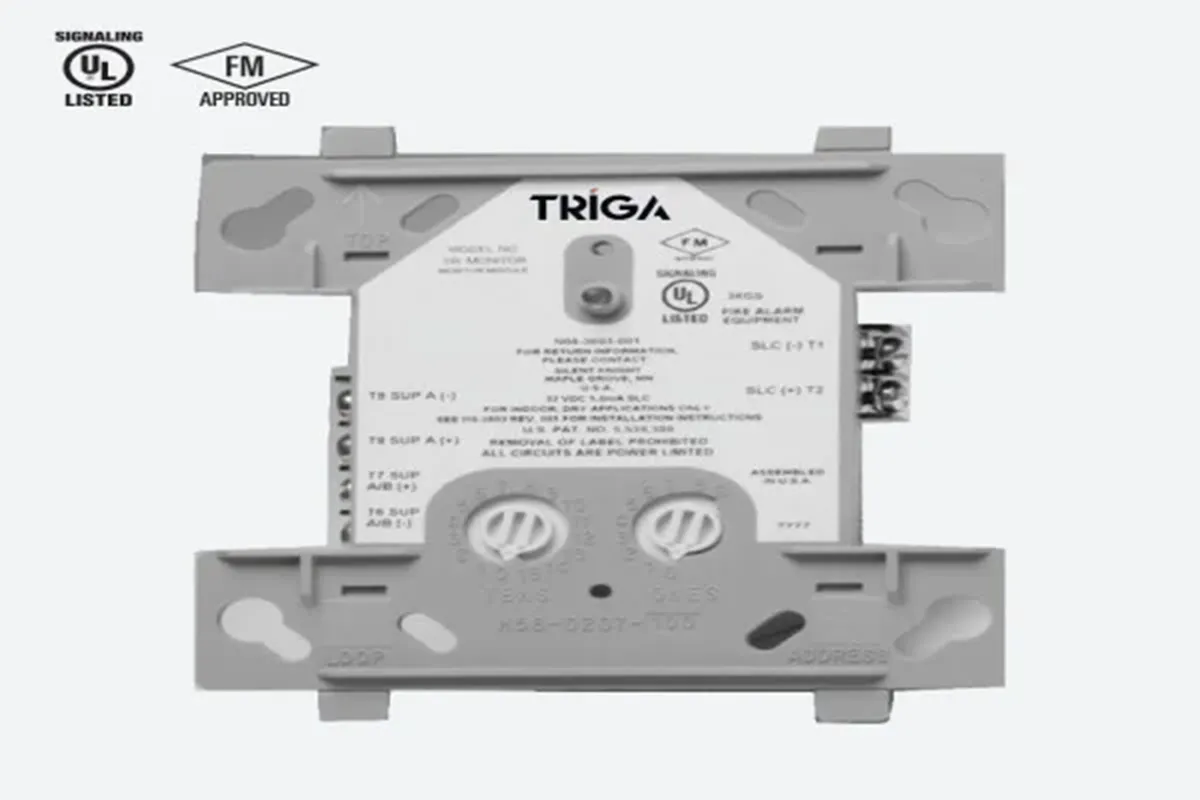

The TR-MONITOR is an addressable monitor module for use with the Triga Series fire alarm control panels (FACPs). The TR-MONITOR acts as an interface to contact devices, such as waterflow switches and pull stations.
The TR-MONITOR supports Class A supervised or Class B supervised wiring to the load device. Conventional 4-wire smoke detectors can be monitored for alarm and trouble conditions.
INSTALLATION
The TR-MONITORR mounts directly into a 4” square electrical box. The box must have a minimum depth of 2-1/8”. A surface mount electrical box (TR-SMB500) is available from Triga.
COMPATIBILITY
The TR-MONITOR is compatible with the following Triga Series FACPs:
• TR-2100R / ITR-2100B
• TR-2100ECSR / TR-2100ECSB
• TR-R2100R / TR-R2100B
PHYSICAL
4.5″ H x 4″ W x 1.25 D ( 11.4 x 10.2 x 3cm)
Shipping Weight: 6.3oz (196g)
ELECTRICAL RATINGS
Operating Voltage: 15 – 32 VDC
Current Draw (LED on): 5.0mA max
Operating Current (LED flashing): 375μA
Standby Current: 400 μA max @ 24 VDC (one communication every 5 sec with 47K EOL); 550 μA max @ 24 VDC (one communication every 5 sec with EOL <1K)
5.5 mA (with LED latched on)
LED Current: 5.5 mA (with LED latched on)
End-of-Line Resistance: 47K W
Initiating Device Circuit Wiring Resistance: 1,500Ω max SLC Loop Resistance: 40 W max.
ORDERING INFORMATION
TR-MONITOR: Monitoring Module
ACCESSORIES
TR-SMB500: 4” Square surface mount electrical box

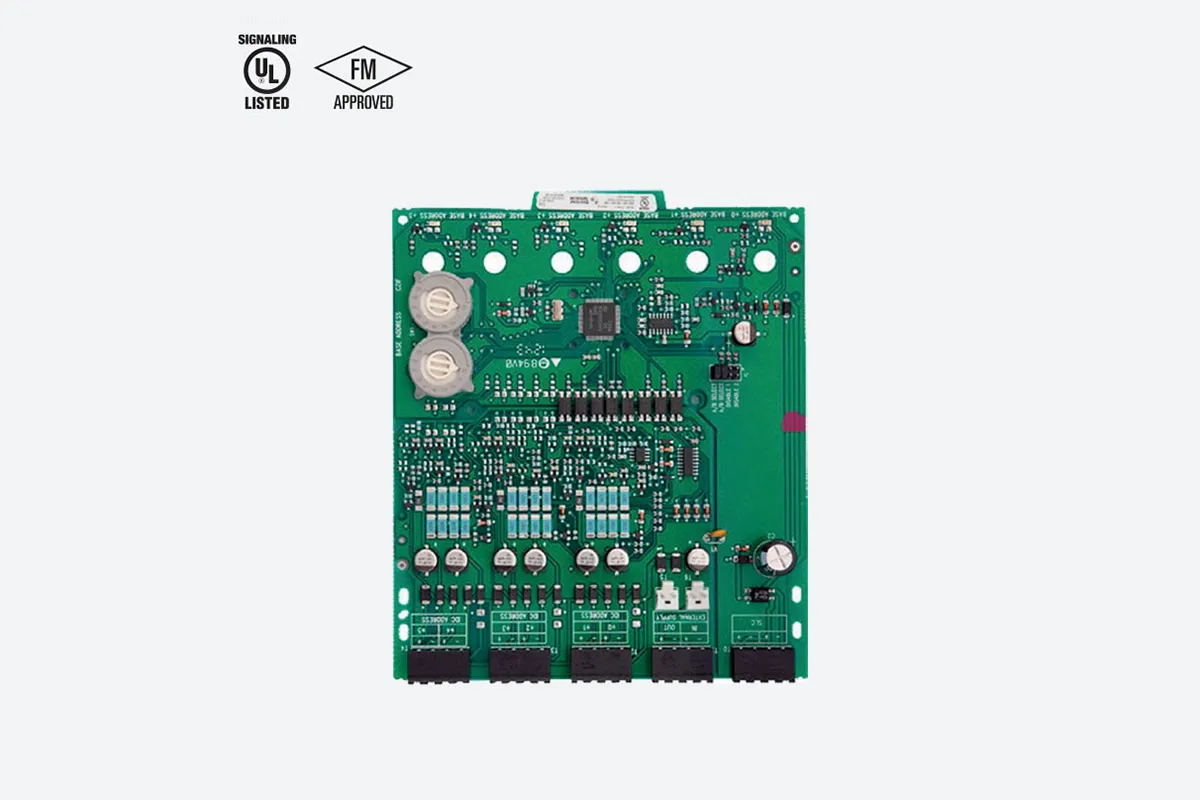

The TR-RELAY-6 is an addressable relay module for use with Triga Series fire alarm control panels (FACPs). The TR-Relay-6 has six Form C relays. It allows a Triga FACP to switch discrete contacts by code command. If needed, you can disable a maximum of three unused modules on the TR-RELAY-6 board. No supervision is provided for the notification appliance circuit.
The TR-RELAY-6 contacts can be used for virtually any normally open or normally closed application. Each TR-RELAY- 6 is programmed with a unique signaling line circuit (SLC) loop address. When an event occurs that controls the TR-RELAY-6, the relay is triggered by the FACP.
INSTALLATION
The TR-RELAY-6 mounts in the Triga TR-IDP-ACB cabinet. The TR-IDP-ACB has a built-in chassis that will a ccommodate one or two TR-RELAY-6 modules.
COMPATIBILITY
The TR-RELAY-6 is compatible with the following Triga Series FACPs:
• TR-2100R / TR-2100B
• TR-2100ECSR / TR-2100ECSB
• TR-R2100R / TR-R2100B
Physical: 6.8″ H x 5.8″ W x 1.25″ D
Shipping Weight: 6.3oz (196g)
ELECTRICAL RATINGS
Operating Voltage: 15 to 32VDC
Standby Current: 1.45mA maximum
Alarm Current: 30 mA/Relay Pulse (15.6 mS pulse duration) pulse under panel control
Relay Contact Ratings:
2.0A @ 25VAC (PF=.35), non-coded
3.0A @ 30VDC resistive, non-coded
2.0A @ 30VDC resistive, coded
0.46A @ 30VDC (L/R=20ms), non-coded
0.7A @ 70.7VAC (PF=.35), non-coded
0.9A @ 125VDC resistive, non-coded
0.5A @ 125VAC (PF=.75), non-coded
0.3A @ 125VAC (PF=.35), non-coded
ORDERING INFORMATION
TR-RELAY-6: Six Relay Module
ACCESSORIES
TR-IDP-ACB: Cabinet. 15.25″ H x 12.5″ W x 3″ D
