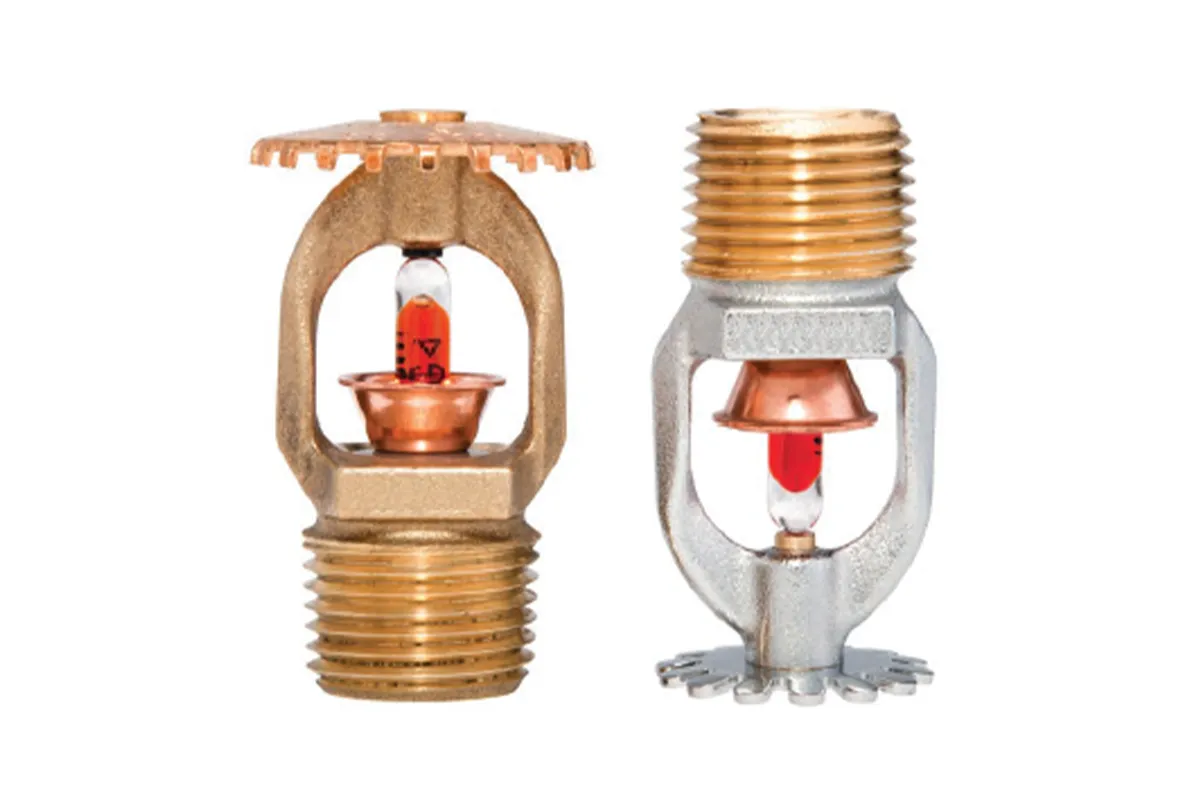

The TYCO Series TY-B, 5.6 K-factor, Upright (TY315) and Pendent (TY325) Sprinklers described in this data sheet are standard response, standard coverage, decorative 5 mm glass bulb type spray sprinklers designed for use in light, ordinary, or extra hazard, commercial occupancies such as banks, hotels, shopping malls, factories, refineries, and chemical plants.
The recessed version of the Series TY-B Pendent Sprinkler, where applicable, is intended for use in areas with a finished ceiling.
This recessed pendent sprinkler uses one of the following:
Technical Data
Approvals
Refer to Table A
Maximum Working Pressure
175 psi (12.1 bar)
250 psi (17.2 bar)*
* The maximum working pressure of 250 psi (17.2 bar)
only applies to the listing by Underwriters Laboratories, Inc. (UL).
Discharge Coefficient
K = 5.6 GPM/psi½ (80,6 LPM/bar½)
Temperature Ratings
Refer to Table A.
K
|
Sprinkler Type
|
Temperature
Rating
|
Bulb Liquid color
|
Sprinkler finish
| ||
Natural Brass
|
Chrome plated
|
Polyester*
| ||||
5.6
1/2
NPT
|
Upright (TY315)
andPendent(TY325)
Figure 1
|
135°F(57°C)
|
Orange
|
1,2,3,4,5,6
| ||
155°F(68°C)
|
Red
| |||||
175°F(79°C)
|
Yellow
| |||||
200°F(93°C)
|
Green
| |||||
286°F(141°C)
|
Blue
| |||||
360°F(182°C)
|
Mauve
| |||||
Rescend pendent
(TY325)
Figure 4 and 5
|
135°F(57°C)
|
Orange
|
1,2,3,4
| |||
155°F(68°C)
|
Red
| |||||
175°F(79°C)
|
Yellow
| |||||
200°F(93°C)
|
Green
| |||||
286°F(141°C)
|
Blue
|
1,2
| ||||
TYCO Series TY-B, 2.8, 5.6, and 8.0 K-factor, Upright and Pendent Sprin-klers described in this technical data sheet are standard response, standard coverage decorative 5 mm glass bulb type spray sprinklers designed for use in light, ordinary, or extra hazard, commer-cial occupancies such as banks, hotels, shopping malls, factories, refineries, and chemical plants.
The recessed version of the Series TY-B Pendent Sprinkler, where applicable, is intended for use in areas with a finished ceiling. It uses a two-piece Style 10 (1/2 inch NPT) or Style 40 (3/4 inch NPT) Recessed Escutcheon. The Recessed Escutcheon provides 1/2 inch (12,7 mm) of recessed adjustment or up to 3/4 inch (19,1 mm) of total adjustment from the flush pendant position. The adjustment provided by the Recessed Escutcheon reduces the accuracy to which the fixed pipe drops to the sprinklers must be cut.
An intermediate level version of the Series TY-B Pendent Sprinkler can be obtained by utilizing the Series TY-B Pendent Sprinkler in combination with the Model S2 Shield.
8.0
3/4ʺ
NPT
|
Upright (TY4151)
And Pendent(TY4251)
Figure 3
|
135°F(57°C)
|
Orange
|
1,2,3,4,5,6
|
1,2,5
|
1,2,3,5
|
1,2,5
|
155°F(68°C)
|
Red
| ||||||
175°F(79°C)
|
Yellow
| ||||||
200°F(93°C)
|
Green
| ||||||
286°F(141°C)
|
Blue
|
1**,2**,3**,5**
|
1**,2**,5**
| ||||
360°F(182°C)
|
Mauve
|
N/A
| |||||
Rescend pendent
(TY4215)
Figure 6
|
135°F(57°C)
|
Orange
|
1,2,3,4,5
|
N/A
| |||
155°F(68°C)
|
Red
| ||||||
175°F(79°C)
|
Yellow
| ||||||
200°F(93°C)
|
Green
| ||||||
286°F(141°C)
|
Blue
|
1,2
| |||||
The SHIELD Sprinkler, SD1020, SD1021 (Glass Bulb Type) 3/8″ Standard Orifice, Upright, Pendent and Recessed Pendent, Quick Response, design incorporates state-of-the-art, heat responsive, frangible glass bulb design for prompt, precise operation. The die cast frame is more streamlined and attractive than traditional sand cast frames.
It is cast with a hex-shaped wrench boss to allow easy tightening from many angles, reducing assembly effort. This sprinkler is available in various temperature ratings and finishes to meet many design requirements. The recessed pendent should be utilized with a recessed escutcheon which provides up 3/4″ of adjustments. All sprinklers are manufactured using the time proven Belleville seal used exclusively by all major manufactures to ensure long life and safe operation.
Sprinkler Identification |
Quick Response SD1020, Number SD1021 (bulb 3mm) |
|---|---|
Style
|
Pendent Sprinkler SD1020, Upright Sprinkler SD1021
|
K Factor
|
4.2gpm/psi. (60lpm/bar/2)
|
Response Time Index (RTI)
|
Quick Response 30
|
Nominal Thread Size
|
%" NPT or "PT
|
Max. Working Pressure
|
175PSI(1200kPa)
|
Factory Hydrostatic Test
|
100%@500PSI(3450 kPa)
|
Min. Operation Pressure
|
7 PSI(48 kPa)
|

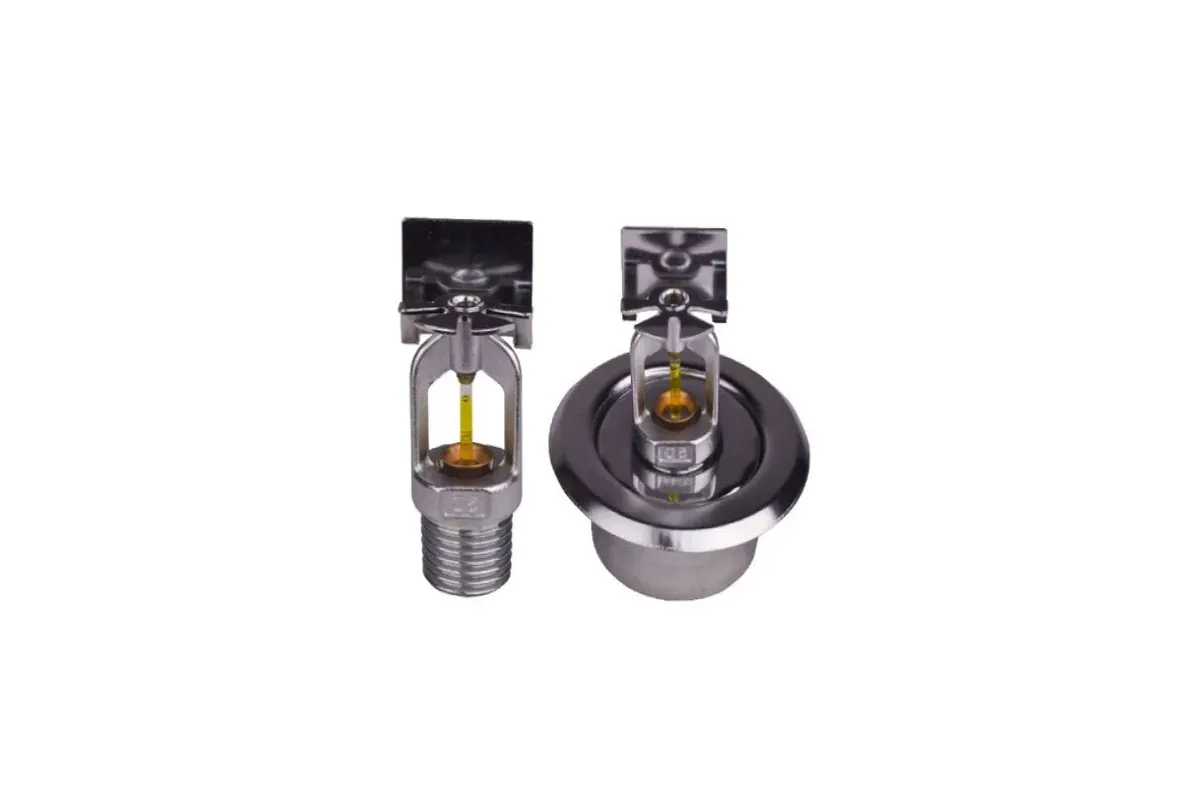

The SD1133, SD1121, 1⁄2″ orifice, standard horizontal sidewall sprinkler is designed for standard or recessed installation. The design provides a crescent-shaped water discharge pattern for installation along a wall or under a beam or ceiling. The design incorporates state-of-the-art, heat responsive, frangible glass bulb design (standard or quick response) for prompt, precise operation. The die cast frame is more streamlined and attractive than traditional sand cast frames.
It is cast with a hex-shaped wrench boss to allow easy tightening from many angles, reducing assembly effort. This sprinkler is available in various temperature ratings and finishes to meet many design requirements. The recessed pendent should be utilized with a recessed escutcheon which provides up 3/4″ of adjustments.
Sprinkler Identification Number |
Standard SD1133 (bulb 5mm), Quick Response SD1121 (bulb 3mm) |
|---|---|
Style
|
Horizontal Sidewall
|
K Factor
|
5.6gpm/psi. (80lpm/bar1/2)
|
Response Time Index
(RTI)
|
Standard 50
Quick Response 30
|
Nominal Thread Size
|
1/2" NPT(15mm)
|
Orfice Size
|
13mm
|
Max. Working Pressure
|
175PSI(1200kPa)
|
Factory Hydrostatic Test
|
100% @500PSI(3450 kPa)
|
Min. Operation Pressure
|
7 PSI(48 kPa)
|
MODEL: SD1125
The Model A SD1125 ½”orifice, extended coverage horizontal sidewall sprinkler is designed for extended coverage or recessed installation. The design provides a crescent-shaped water discharge pattern for installation along a wall or under a beam or ceiling. The design incorporates state-of-the-art, heat responsive, frangible glass bulb design (quick response) for prompt, precise operation. The die cast frame is more streamlined and attractive than traditional sand cast frames.
It is cast with a hex-shaped wrench boss to allow easy tightening from many angles, reducing assembly effort. This sprinkler is available in various temperature ratings and finishes to meet many design requirements. The recessed pendent should be utilized with a Model A recessed escutcheon which provides up ½” of adjustments.
Sprinkler Identification Number |
Quick Response SD1125(bulb 3mm) |
|---|---|
Style
|
Horizontal Sidewall
|
Finish
|
Natural/Chrome
|
K Factor
|
5.6Imp.(80S.I)
|
Response Time Index (Rti)
|
Quick Response 30
|
Nominal Thread Size
|
½”NPT(15mm)
|
Max. Working Pressure
|
175PSI(1200kPa)
|
Factory Hydrostatic Test
|
100%@500PSI(3450 kPa)
|
Min. Operation Pressure
|
7 PSI (48 kPa)
|

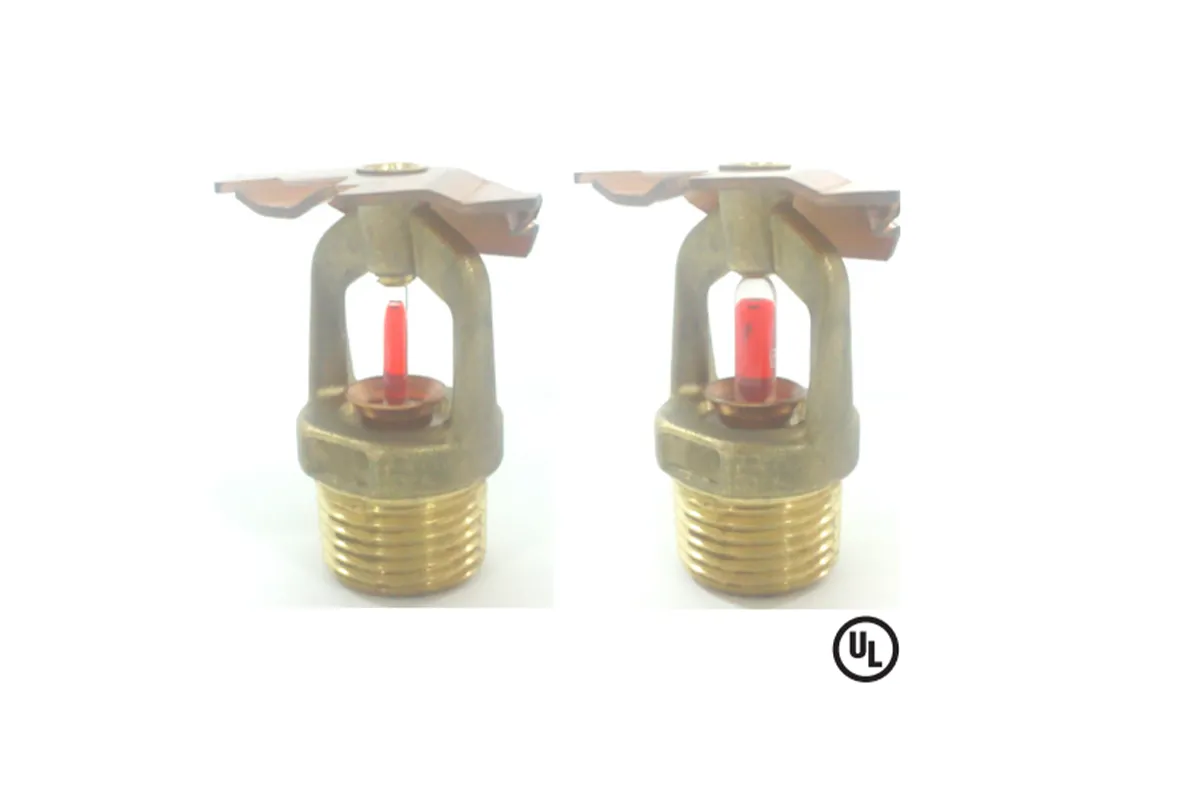

The SD2133, SD2121, ½” orifice, standard vertical sidewall sprinkler is designed for standard installation. The design provides a crescent-shaped water discharge pattern for installation along a wall or under a beam or ceiling. The design incorporates state-of-the-art, heat responsive, frangible glass bulb design (standard or quick response) for prompt, precise operation.
The die cast frame is more streamlined and attractive than traditional sand cast frames. It is cast with a hex-shaped wrench boss to allow easy tightening from many angles, reducing assembly effort. This sprinkler is available in various temperature ratings and finishes to meet many design requirements. The recessed pendent should be utilized with a recessed escutcheon which provides up 3/4” of adjustments. All sprinklers are manufactured using the time proven Belleville seal used exclusively by all major manufactures to ensure long life and safe operation.
Sprinkler Identification Number |
Standard SD2133 (bulb 5mm), Quick Response SD2121 (bulb 3mm) |
|---|---|
Style
|
Vertical Sidewall
|
K Factor
|
5.6gpm/psi½. (80lpm/bar½)
|
Response Time Index (RTI)
|
Standard 50 Quick Response 30
|
Nominal Thread Size
|
½”NPT(15mm)
|
Orfice Size
|
13mm
|
Max. Working Pressure
|
175PSI(1200kPa)
|
Factory Hydrostatic Test
|
100%@500PSI(3450 kPa)
|
Min. Operation Pressure
|
7 PSI(48 kPa)
|

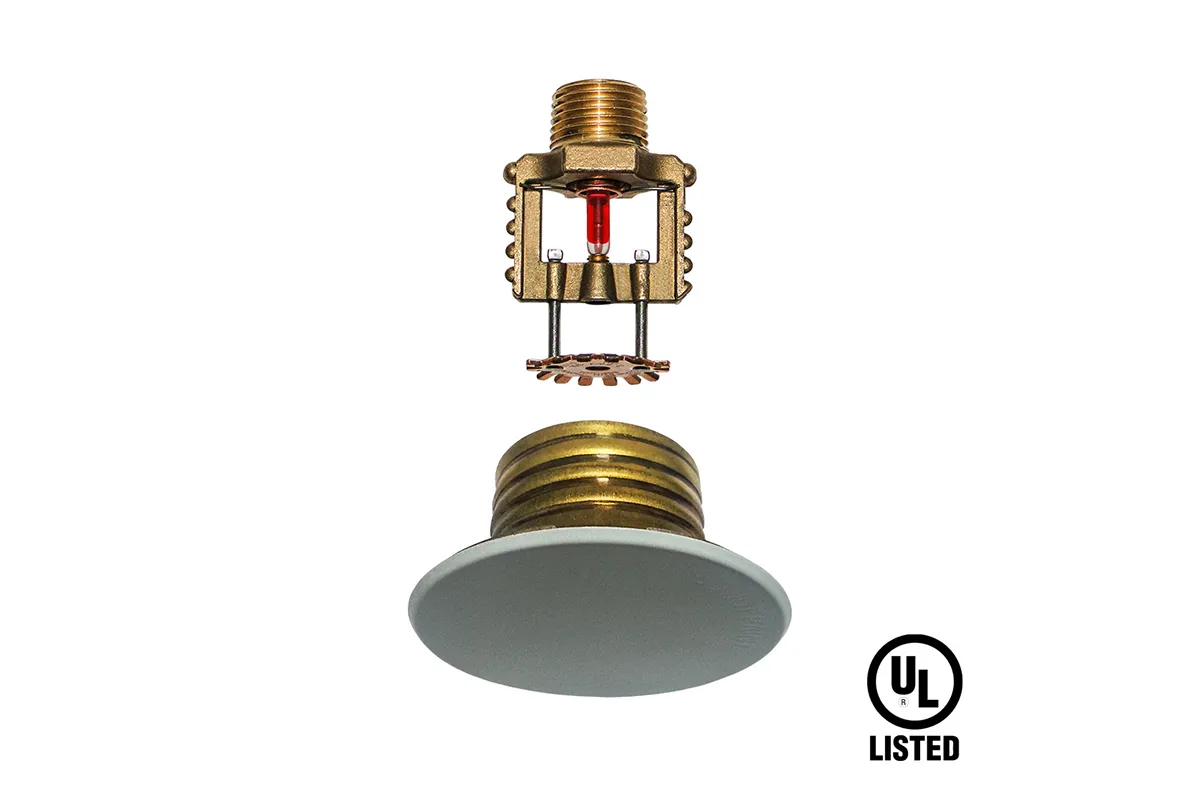

Engineered for precision and reliability, the SHIELD SD1050 and SD1055 concealed sprinklers feature an advanced heat-responsive glass bulb design, ensuring fast and accurate activation in fire emergencies. The sleek forged frame provides a modern, low-profile appearance, surpassing traditional sand-cast designs in both aesthetics and performance.
Designed for effortless installation, the integrated hex-shaped wrench boss allows secure tightening from multiple angles. Available in various temperature ratings and finishes, these sprinklers adapt to diverse architectural and design requirements.
For concealed pendant installations, a compatible concealed cover plate is recommended, offering up to 6mm of adjustment for seamless integration. Like all industry-leading sprinklers, the SHIELD series utilizes the proven Belleville seal—trusted by major manufacturers—to ensure long-term durability and leak-free operation.
Key Features:
Quick-response glass bulb for rapid, reliable activation
Streamlined forged frame for a discreet, modern look
Hex wrench boss for easy multi-angle installation
Multiple temperature ratings & finishes for design flexibility
Concealed cover plate compatibility (6mm adjustment range)
Belleville seal technology for superior leak resistance and longevity
Sprinkler Identification Number |
Standard SD1050 (bulb 5mm), Quick Response SD1055 (bulb 3mm) |
|---|---|
Style
|
Concealed Pendent Sprinkler
|
Finish
|
Sprinkler-Natural Cover Plate*-Natural/Chrome
|
K Factor
|
5.6gpm/psi½. (80lpm/bar½)
|
Response Time Index (Rti)
|
Standard 50 (m.s)½ Quick Response 30 (m.s)½
|
Nominal Thread Size
|
½”NPT(15mm)
|
Orifice Size
|
13mm
|
Max. Working Pressure
|
175PSI(1200kPa)
|
Factory Hydrostatic Test
|
100%@500PSI(3450 kPa)
|
Min. Operation Pressure
|
7 PSI(48 kPa)
|
The Reliable Brand, Model GXLO (Extra-Large Orifice) Upright & Pendent Sprinklers are reliable, standard-coverage, standard-response sprinklers designed for pump rooms and other demanding environments, featuring a robust center strut and a soldier-in-compression thermal element for dependable operation.
Approved by FM & UL for both storage and non-storage occupancies, these sprinklers comply with NFPA 13 and other applicable standards when used in hydraulically calculated Control Mode Density Area (CMDA) systems. Available with 3/4-inch NPT or ISO 7-R3/4 threads for new installations (with 1/2-inch NPT or ISO 7-R1/2 threads available for retrofit upright models only), they can be installed using the Model H wrench for unguarded applications. The upright version can also be equipped with a factory-installed water shield for intermediate-level use, while additional water shields, guards, or guard/shield combinations (field- or factory-installed) are available for both upright and pendent models—installation of guarded assemblies requires the Model JV wrench for proper threading into fittings. Refer to the Technical Specifications for further details on optional accessories and configurations.
Style: Upright, Intermediate Upright
Threads: 3/4” NPT or ISO 7-1R3/4*
Nominal K-Factor: 11.2 (160 metric)
Max. Working Pressure: 175 psi (12 bar)
Material Specifications
Thermal Sensor: Solder Capsule
Sprinkler Frame: Brass Alloy
Button/Cup: Brass Alloy
Sealing Assembly: Brass with PTFE
Load Screw: Bronze
Deflector: Bronze Alloy
Levers: Bronze Alloy
Ejection Spring: Stainless Steel
Sensitivity Standard Response
Guard & Shield
D-6 Guard & Water Shield (cULus)
D-7 Guard & Water Shield (FM)
D-8 Guard (FM)
Water Shield (factory installed; FM)
Sprinkler wrench
Model H
Model W15 (with guard installed)
Listings & Aprovals
cULus Listed
FM Approved

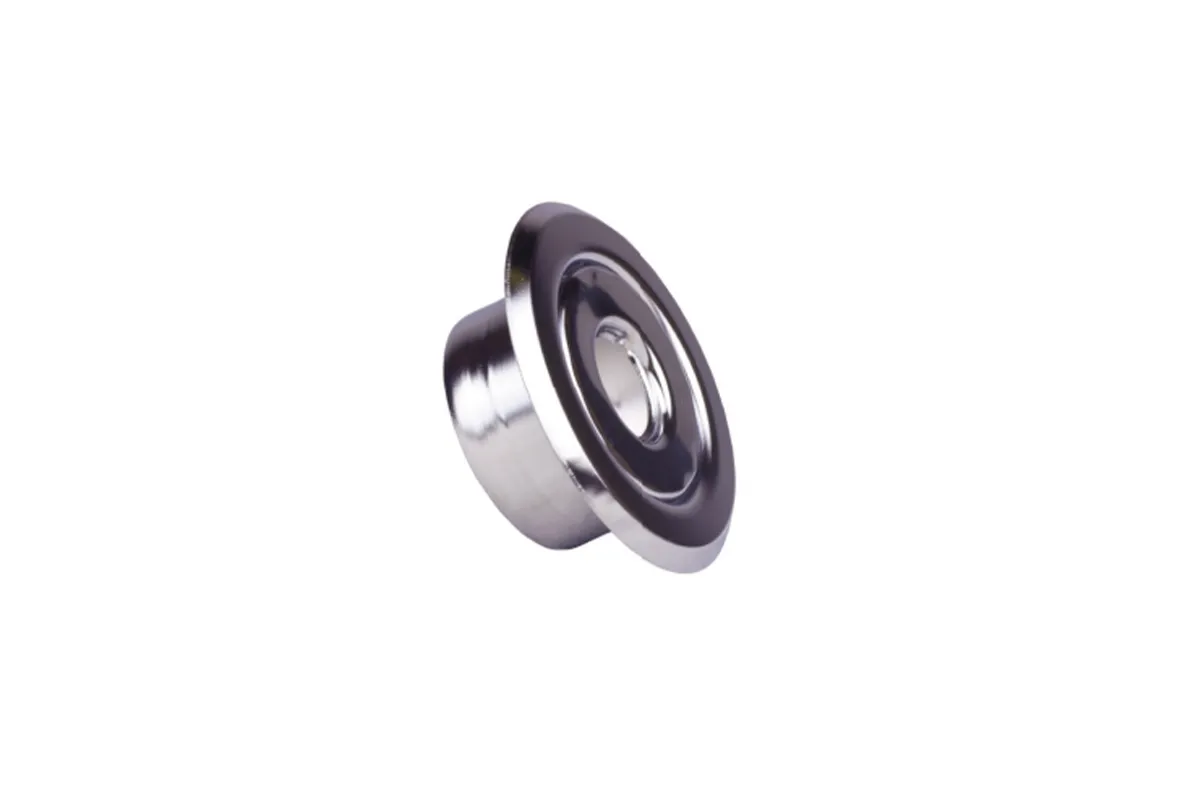

Adjustable Escutecheon Plate – Double pieces
Bright Chrome Finish
Painted available upon request
Suitable for 1/2″ and 3/4″ Sprinkler Head
SHIELD Expansion Joints (U-Flex and V-Flex) provide extremely reliable and flexible movement in the piping system deployed in firefighting, HVAC, water and fluid carrying domestic and industrial systems. The joints act as shock absorbers during seismic shocks and safeguard the piping system from potential breakdown and critical losses. SHIELD U-Flex and V-Flex assemblies prevent piping’s structural deformations such as cracks and breakdowns of rigid connections by the required flexibility. They offer easy, safe and reliable solutions to secure the piping system.
