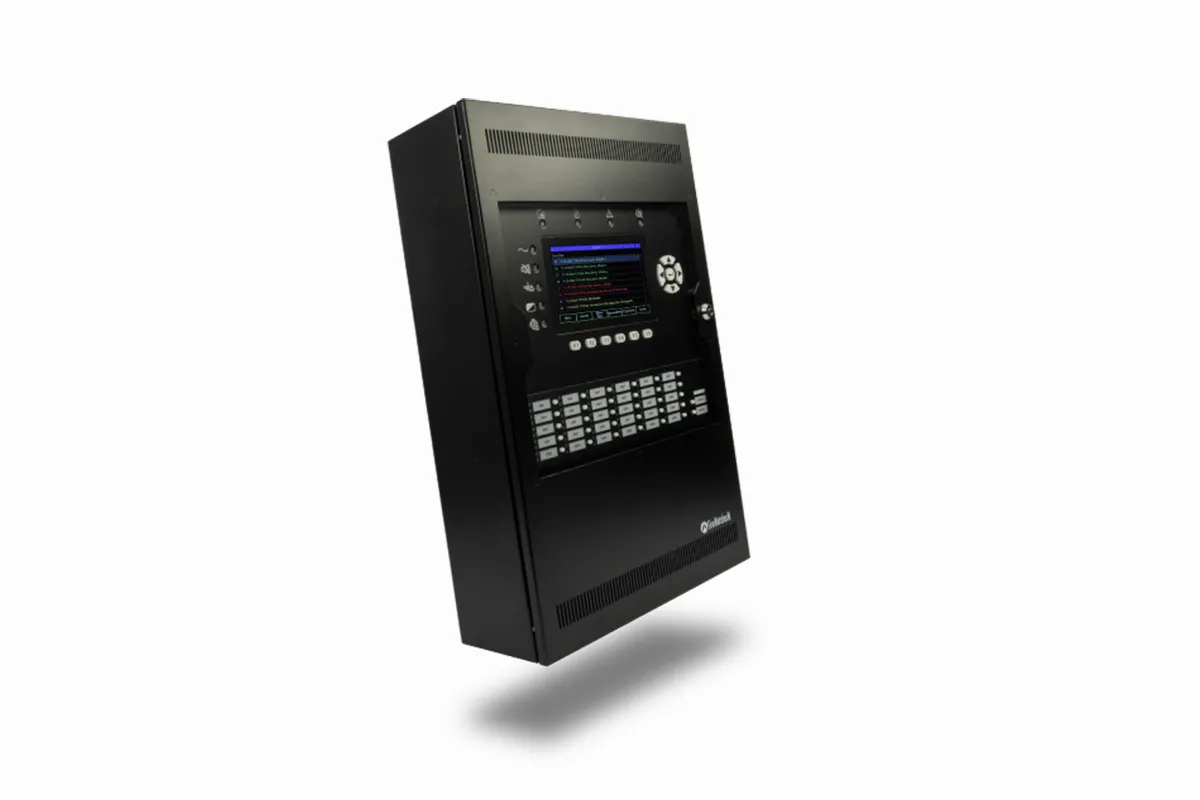

This system supports up to 9 SLC loops and 2,200 addressable points, with 4 onboard NAC circuits (expandable to 12) and a 10A NAC current capacity. It is networkable with up to 99 panels in Class B or 31 in Class A, and features a 7-inch, 8-line LCD display, 40 onboard LED zone indicators, and robust event storage (4,000 alarms, 12,000 other events). Additional highlights include battery support (hosts 2x 18Ah in case, charges up to 55Ah), multiple wiring knockouts, proper ventilation, and flexible mounting options.
interface with 6 auxiliary function keys
stations, and modules
or Class B
sequentially assign addresses
programmable through front panel. N
upgrade.
system configurations and applications.
Supervisory, and Monitor.
monitoring software
programmable definitions enable the installer to
determine which functions are accessible at each
password level
event Log and 5000 non alarm event log.

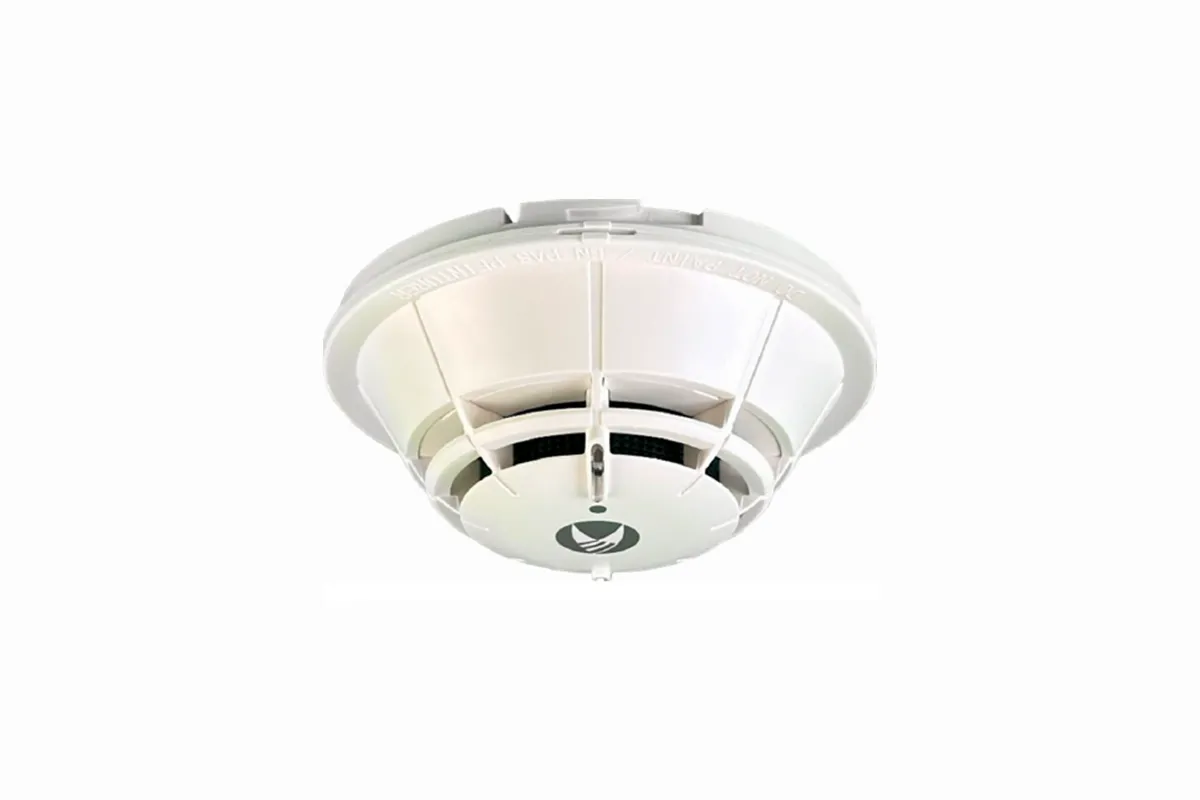

The Series 2 FW2511 Photoelectric Smoke Detector is an intelligent device that communicates status with a Maple Armor control panel and occupies one address on the Signaling Line Circuit (SLC). It is a UL listed device according to UL 268 and ULC-S529 Fire Protective Signaling Systems for indoor use. The detector features a sleek and compact design that offers both visual appeal and exceptional reliability. It is made of high-impact plastic. The detector features an integrated Microcontroller Unit (MCU), it conducts comprehensive self-diagnostics and analyzes results for consistent performance. It provides rapid and reliable response to a wide variety of fires.
Nominal Voltage |
24 VDC |
|---|---|
Operating Voltage Range
|
15.3 to 28 VDC
|
Standby Current
|
0.16 mA
|
Alarm Current
|
0.65 mA
|
Smoke Alarm
Set-point Range
|
1.34%/ft to 2.45%/ft（UL）
1.63%/ft to 3.11%/ft（ULC）
|
Operating Temperature
|
0° C to 49° C (32° F to 120° F)
|
Operating Humidity |
0 to 93% RH Non-condensing |
|---|---|
Installation Environment
|
Dry indoor use only
|
Material
|
High impact plastic
|
Dimension
|
4 in. Diameter, 1 5/8 in Height
105 mm Diameter, 43 mm Height
|
Mounting
|
Ceiling, Wall
|
Compatible Bases
|
FW2501, FW2502, FW2509
|
Compatible FACP
|
FW2105, FW2107
|
Regulatory Compliance
|
UL/ULC, FCC
|
The Series 2 FW2521 Heat Detector is an intelligent device that communicate status with a compatible control panel and occupies one address on the Signaling Line Circuit (SLC). It is a UL listed device according to UL 268 and ULC-S529 for Fire Protective Signaling Systems for indoor use. The detector features a sleek and compact design that offers both visual appeal and exceptional reliability.
It is made of high-impact plastic. The detector features an integrated Microcontroller Unit (MCU), it conducts comprehensive self-diagnostics and analyzes results for consistent performance.
Nominal Voltage |
24 VDC |
|---|---|
Operating Voltage Range
|
15.3 to 28 VDC
|
Standby Current
|
0.19 mA
|
Active Current
|
0.44 mA
|
Operation Mode
|
Fixed Temperature & Rate-of-Rise
|
Fixed Temperature Rating
|
135°F (57.2°C)
|
Rate-of-Rise Detection |
15°F/min |
|---|---|
Operating Temperature
|
0° C to 49° C (32° F to 120° F)
|
Operating Humidity
|
0 to 93% RH Non-condensing
|
Installation Environment
|
Dry indoor use only
|
Mounting
|
Ceiling
|
Housing Material
|
High impact plastic
|
Dimension
|
4 in. Diameter, 1 5/8 in Height
105 mm Diameter, 43 mm Height
|
Compatible Bases
|
FW2501, FW2502, FW2509
|
Compatible
|
UL/ULC, FCC
|

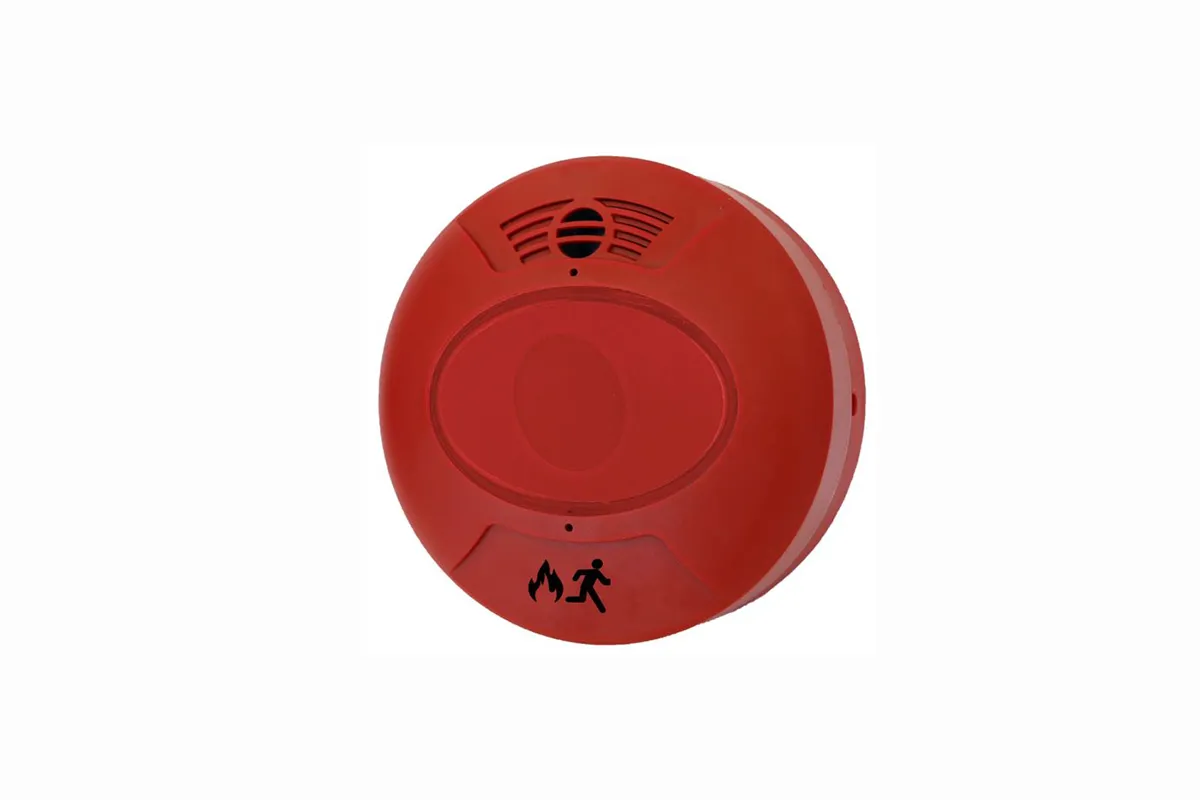

The Series 2 Maple Armor Horn, Strobe, and Horn-Strobe appliances are a comprehensive family of audible and visual signaling appliances, combining contemporary design with energy-efficient performance.
They are engineered to operate in conventional and addressable operation modes, offering unparalleled versatility for a wide range of applications. In addressable mode, each device is equipped with intelligent communication capabilities, allowing it to report its precise location and status directly to the control panel.
The appliances provide a wide array of field-configurable audible and visual settings.The light intensity (candela) can be adjusted on-site to 15, 30, 75, 110, 140, or 177 cd. Additionally, multiple sound patterns are available, each with seven selectable sound output levels. All settings can be conveniently configured via a handheld programmer or directly through the control panel. The strobe appliances produce a flash rate of one flash per second over the regulated voltage range. The temporal tone generated by the horn portion is designed in accordance with ANSI and NFPA 72 for standard emergency evacuation signaling requirements. All Series 2 signaling appliances are designed to be installed on the same installation base as previous Maple Armor appliances, and they are compatible with Series 1 control panels, making them ideal not only for new installations but also for retrofits.
Operating Voltage |
16 to 33 VDC (regulated 24VDC) |
|---|---|
Effective Light Output (cd)
|
15, 30, 75, 110, 140, 177 cd
|
Audible Pattern
|
Temporal 3, temporal 4, steady, 20bpm,
60bpm, 120bpm
|
Strobe Flash Rate
|
1 flash per second
|
Wire Size
|
18 to 12 AWG (0.82 mm2 to 3.31 mm2)
|
Operating Temperature
|
0° C to 49° C (32° F to 120° F)
|
Operating Humidity |
0 to 93% RH Non-condensing |
|---|---|
Operating Temperature
|
0° C to 49° C (32° F to 120° F)
|
Operating Humidity
|
0 to 93% RH Non-condensing
|
Installation Environment
|
For indoor use only, Wall and Ceiling
mount
|
Compatible FACP
|
FW105, FW106, FW106S, FW131,
FW2105, FW2107
|
Compatible Base
|
FW901
|

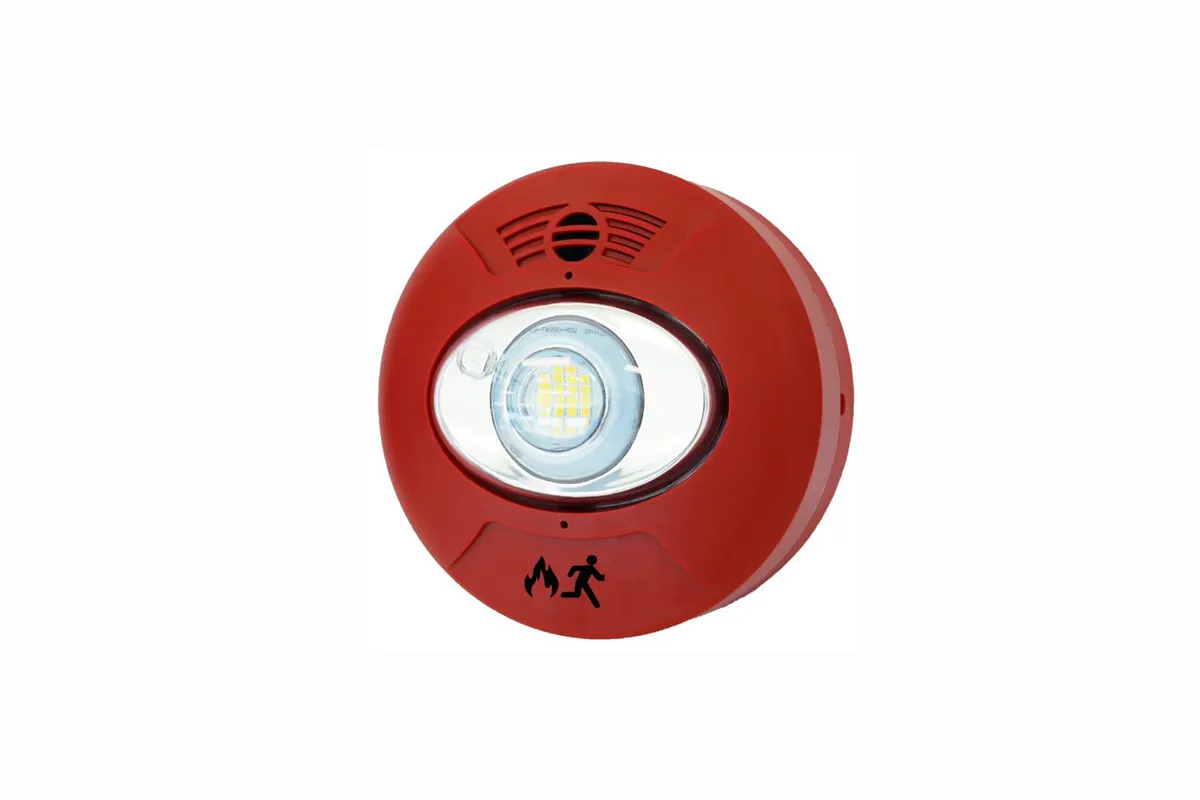

The FW963AGR/FW963AGW Horn Strobes and FW983AGR/FW983AGW Strobes are a family of addressable multi-candela visual and audible signal appliances with light sources generated from a white LED, listed according to UL 1971, UL 1638, UL 464, ULC-S525, and ULC-S526 for indoor use. The LED light source offers superior performance, including low power consumption and long operating life. Each appliance has the intelligence to report its location (the device address) and status to the FW series fire alarm control panels. Six levels of light output are selectable.
Figure 1 shows relative light outputs in horizontal and vertical dispersion from strobes mounted on walls/ceilings. The strobe appliances produce a flash rate of one flash per second over the Regulated Voltage Range. The temporal tone generated by the horn portion is designed as per ANSI and NFPA72 for standard emergency evacuation signaling requirements. The appliance has the feature that can synchronize multiple horns and/or strobes in a complete fire alarm system. The FW973AGR/FW973AGW Horns are addressable audible signal appliances listed according to UL 464 and ULC-S525 for indoor use. The temporal tone generated by the horn portion is designed as per ANSI and NFPA72 for standard emergency evacuation signaling requirements. The horn has a feature that can synchronize multiple horns in a complete fire alarm system.
Operating Voltage |
16 to 33 VDC (regulated 24VDC) | ||||||
|---|---|---|---|---|---|---|---|
NOU RMS Operating Current
|
177 cd
|
130 cd
|
100 cd
|
75 cd
|
45 cd
|
15 cd
| |
FW963AGR FW963AGW |
218
|
164
|
129
|
98
|
70
|
55
| |
FW983AGR FW983AGW |
210
|
145
|
114
|
84
|
55
|
40
| |
FW973AGR FW973AGW |
48
| ||||||
ALU RMS Operating Current
|
112 uA
| ||||||
Sound Level (dBA)
|
Voltage
|
16 Vdc
|
24 Vdc
|
33 Vdc
| |||
UL Reverberant
|
85
|
89
|
93
| ||||
ULC Anechoic
|
89
|
92
|
95
| ||||
Directional Characteristics
|
Horizontal Axis
|
Angle
|
OSPL (dBA)
| ||||
0° (ref)
|
0 (ref)
| ||||||
± 49°
|
-3
| ||||||
± 53°
|
-6
| ||||||
± 90°
|
-6.9
| ||||||
Vertical Axis
|
Angle )
|
OSPL (dBA
| |||||
0° (ref)
|
0 (ref)
| ||||||
± 20°
|
-3
| ||||||
± 28°
|
-6
| ||||||
± 90°
|
-15
| ||||||
Effective Light (cd)
|
177, 130, 100, 75, 45, 15 (See Figure above for candela selection)
| ||||||
Operating Temperature
|
0° C to 49° C (32° F to 120° F)
| ||||||
Operating Humidity
|
0 to 93% RH
| ||||||
Horn Pattern
|
Temporal 3
| ||||||
Strobe Pattern
|
1 flash per second
| ||||||
Wire Size
|
12 to 18 AWG
| ||||||
Location
|
Indoor wall/ceiling
| ||||||
Compatible Model
|
FW105/FW106/ FW106C FACP
| ||||||
The FW562-A/B/C and FW562C-A/B/C models are smart ventilation duct detectors designed for use with model FW511A detector heads. FW562-A/B/C are UL-listed devices according to UL 268A, and FW562CA/B/C are ULC listed according to ULC- S529 for fire protection systems. Equipped with a photoelectric smoke detector, the units will signal the presence of a dangerous amount of combustion product in the ventilation system. They are compatible with Maple Armor’s FW series control panels model FW105, FW106, FW106C, FW106S, FW106SC.
Nominal Voltage |
24 VDC |
|---|---|
SLC Voltage Range
|
17.6 to 28V dc
|
Standby Current
|
0.35 mA
|
Alarm Current
|
2 mA
|
Operating Temperature
|
32°F to 100°F (0°C to 38°C)
|
Operating Humidity
|
0% to 93% RH
|
Dimension
|
329(W) x 114(H) x 51(D) mm (13 1/8 x 4 x 2) in.
|
Weight (with base)
|
4.6 oz (132g)
|
Mounting location
|
Side and top
|

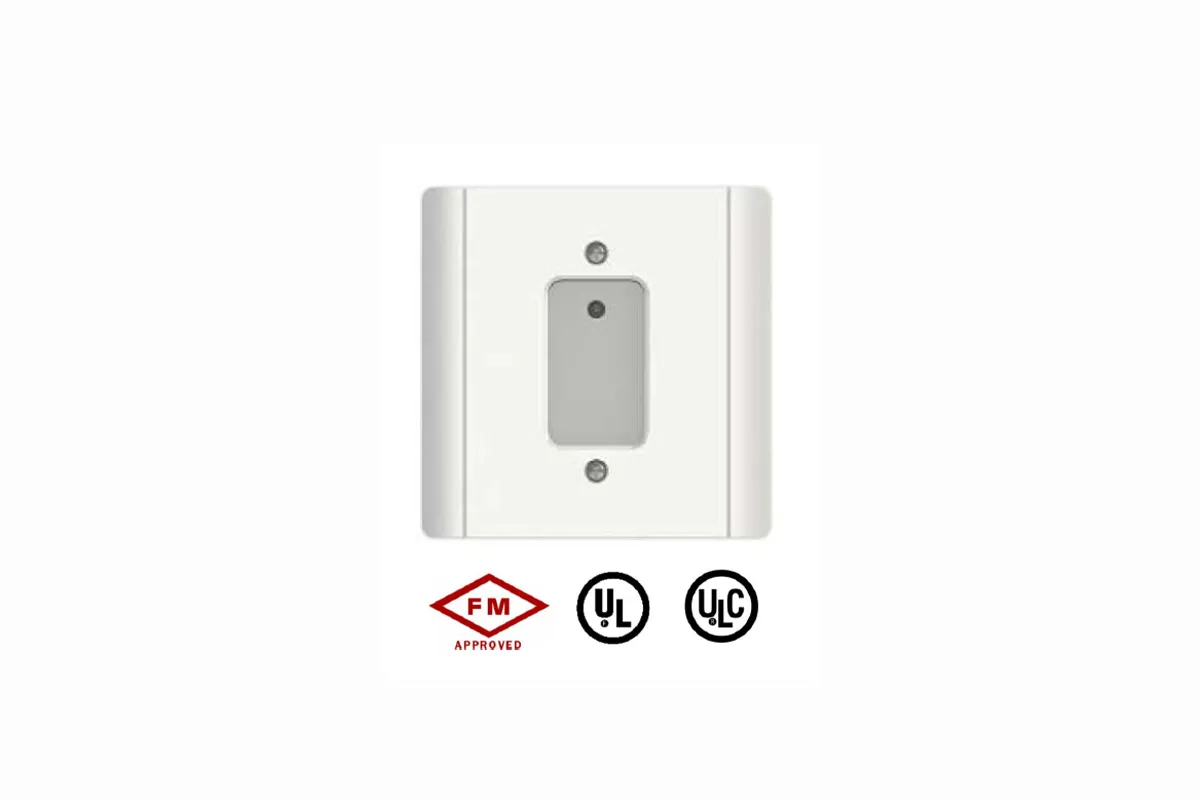

The FW811 input module monitors a single contact. The input line is monitored for open line faults and ground faults, and the contact must thus be wired with an end-of-line resistor. It is an intelligent addressable module and takes one address on the Signaling Line Circuit (SLC) or Data Communication Link (DCL) of the fire alarm control panel. The FW811 is a UL/ULC listed device according to UL864 and ULC-S527 for Fire Protective Signaling Systems for indoor use and FM. The type of input contact is configurable.
– Alarm Causing: An alarm causing input will produce an ALARM event. The device red LED will
indicate the alarm condition by turning it on steady. A return to the normal condition will be ignored and the device LED indicator will remain latched in the red alarm condition until a reset command has been received.
– Supervisory/Trouble/Monitor Causing: By changing the FW811 input module functions from itsattribute interface on FACP, it can be configured to be a supervisory, trouble, or monitor signal, which will produce a SUPERVISORY, TROUBLE, or MONITOR event. The device red LED will indicate the event condition by turning on steady. The supervisory and monitor are latched/non-latched selectable. A return to the normal condition will cause the event to disappear and the device LED indicator will return to the normal condition if the supervisory/monitor is non- latched. A return to the normal condition will not cause the event to disappear and the device LED indicator will remain in event condition if the supervisory/monitor is latched. The trouble is non-latched.
Nominal Voltage |
24VDC |
|---|---|
Voltage Range
|
15 to 28VDC
|
Standby Current
|
0.17mA
|
Alarm Current
|
0.79mA
|
Max. Line Impedance
|
25 Ohms
|
Max. Impedance for
Grounding
|
6.6 K Ohms
|
Compatible EOLR
|
FW421 (10K Ohms)
|
Operating Temperature
|
32°F to 120°F (0°C to 49°C)
|
Operating Humidity
|
0% to 93% RH
|
Mounting
|
FW800/FW801 box
|
Dimension
|
120 mm (L) x 120 mm (W) x 45 mm (H)
|
Weight (with backbox)
|
8.7 oz (247 g)
|
Wiring Gauge
|
12 to 18 AWG
|

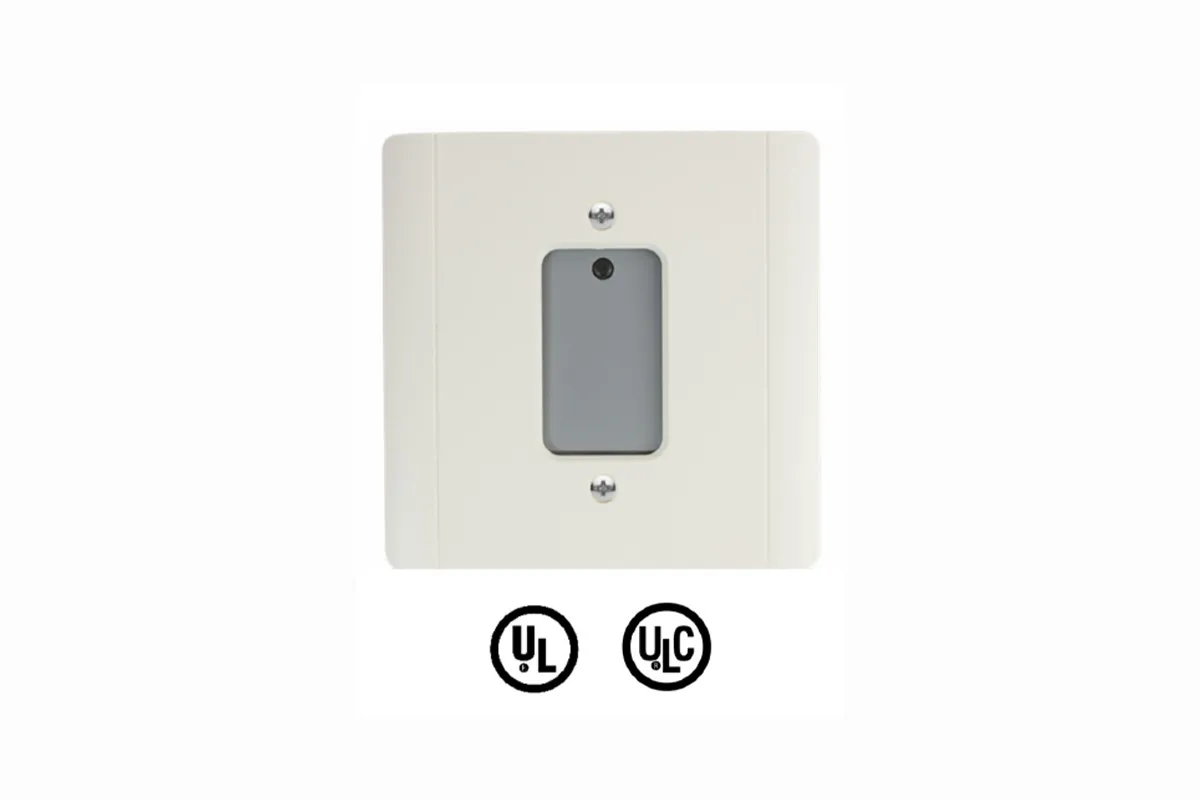

The FW821 input-output module provides one 24VDC output and one feedback input monitor. The input line is monitored for open line faults and ground faults, and the contact must thus be wired with an end-ofline resistor. The output line is monitored for open lines, short-circuit faults, ground faults, and external 24VDC power source loss. It is a UL/ULC listed device according to UL864 and ULC-S527 for Fire Protective Signaling Systems for indoor use.
When the output is activated the device red LED will indicate the event condition by blinking longer. When the feedback is activated the device red LED will indicate the event condition by blinking twice. A return to the normal condition will cause the event to disappear and the device LED indicator will return to blinking every 4 seconds. The FW821 is an intelligent addressable module and takes one address on the Signaling Line Circuit (SLC) or Data Communication Link (DCL) of the fire alarm control panel.
SLC/DCL Nominal Voltage |
24VDC |
|---|---|
SLC/DCL Voltage Range
|
15 to 28VDC
|
Standby Current
|
0.15 mA
|
Active Current (SLC/DCL)
|
0.26 mA
|
External Input Power Supply
|
24VDC (nominal)
|
External Input Power Supply
|
15.4 to 24.4VDC (range)
|
Active Current (Output)
|
80 mA, 0.35pf
|
Output Range
|
15.0 to 24.0VDC
|
(Special Application)
|
Supplied by Model FW106 Auxiliary power output);
|
20.0 to 25.9VDC
| |
(Supplied by Listed 24VDC Regulated power supply).
| |
Max. Line Impedance (Input)
|
25 Ohms
|
Max. Line Impedance (Output)
|
1 Ohm
|
Max. Impedance for Grounding
|
6.6 K Ohms
|
Compatible EOLR
|
FW421 (10K Ohms)
|
Operating Temperature
|
32°F to 120°F (0°C to 49°C)
|
Operating Humidity
|
0% to 93% RH
|
Mounting
|
FW800/FW801 box
|
Dimension
|
120 mm (L) x 120 mm (W) x 45 mm (H)
|
Weight (with backbox)
|
9.2 oz (261 g)
|
Wiring Gauge
|
12 to 18 AWG
|

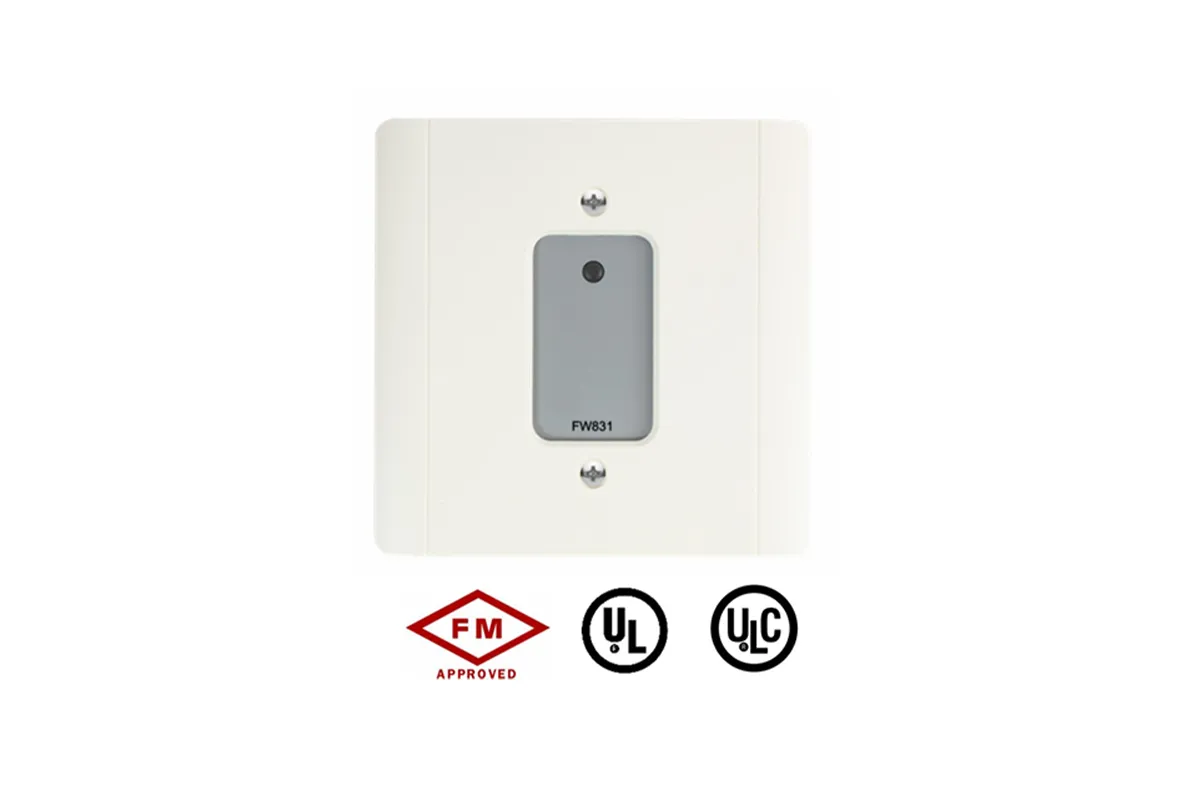

The FW831 relay module provides two control relay outputs which will be activated simultaneously. When the outputs are activated, the device LED will indicate the event condition by red blinking. A return to normal condition will cause the event to disappear and the device LED indicator will return to the red idle condition. The FW831 is an intelligent addressable module and takes one address on the Signaling Line Circuit (SLC) or Data Communication Link (DCL) of the fire alarm control panel. It is a UL listed product according to UL864 and ULC-S527 for Fire Protective Signaling Systems for indoor use.
Nominal Voltage |
24VDC |
|---|---|
Voltage Range
|
15 to 28VDC
|
Standby Current
|
0.15mA
|
Active Current
|
0.26mA
|
Contact Rating
|
30VDC 2A,0.35pf
|
Operating Temperature
|
32°F to 120°F (0°C to 49°C)
|
Operating Humidity
|
0% to 93% RH
|
Dimension
|
120 mm (L) x 120 mm (W) x 45 mm (H)
|
Weight (with backbox)
|
9.0 oz (255 g)
|
Mounting
|
FW800/FW801 box
|
Wiring Gauge
|
12 to 18 AWG
|

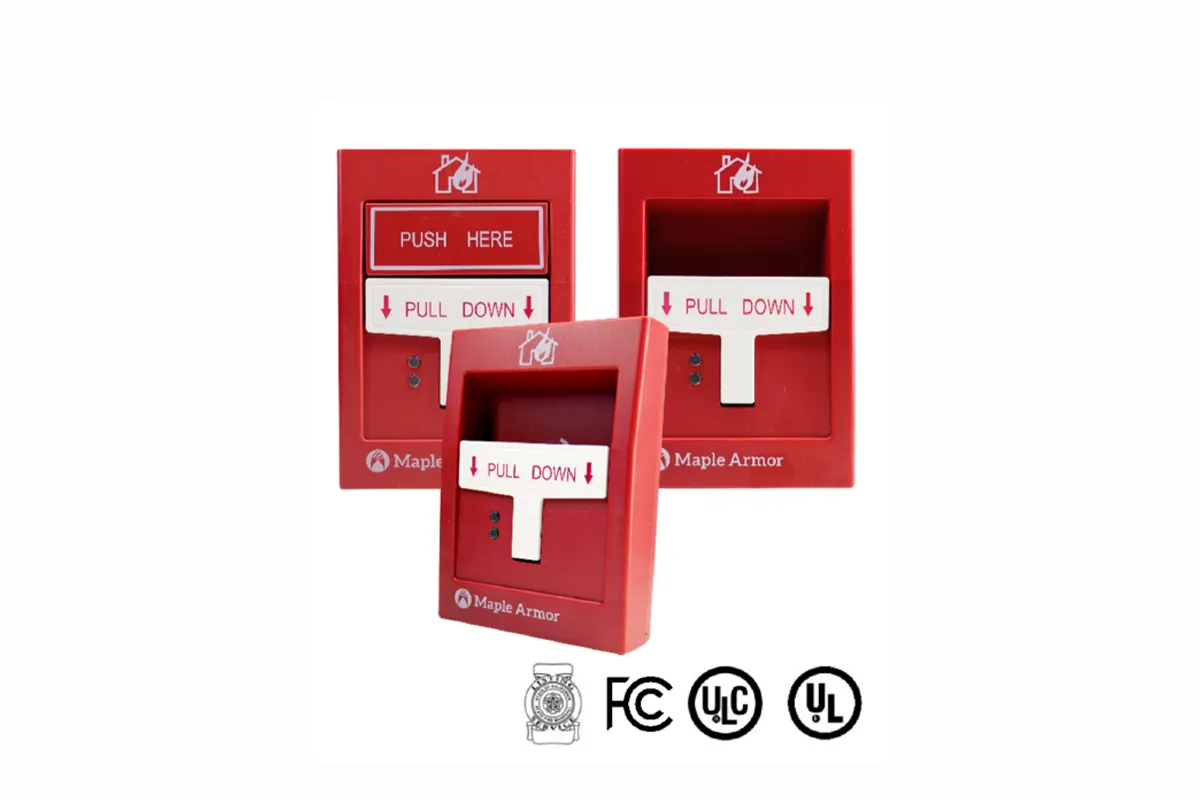

The Series 2 Manual Pull Stations are a family of addressable devices that communicate status with the control panels and occupies one address on the SLC loop. They are UL listed devices according to UL 38 and ULCS528 for Fire Protective Signaling Systems for indoor use. Three addressable pull stations are available in singlestage, two-stage, and dual-action models.
They come equipped with a Form C dry contact output, which can be configured as normally open (N/O) or normally closed (N/C) using a jumper switch on the back of the station. These stations feature a sleek design and durable construction. The housing and pull lever are made from high-impact plastic, while the back mount is constructed from metal. The housing is red with white lettering, and the pull lever is white with red lettering. All Series 2 Manual Pull Station are designed to operate with all Series 1 & Series 2 Maple Armor control panels, which make them ideal not only for new installations but also for retrofits.
FW2721 FW2722 FW2723 | |
|---|---|
Nominal Voltage
|
24 VDC
|
Operating Voltage Range
|
13 to 28 VDC
|
Standby Current
|
0.14 mA 0.16 mA 0.14 mA
|
Alarm Current
|
0.27 mA 0.37 mA 0.27 mA
|
Dry Contact Rating
|
2A, 24VDC
|
Operating Temperature
|
0° C to 49° C (32° F to 120° F)
|
Operating Humidity |
0 to 93% RH Non-condensing |
|---|---|
Installation Environment
|
Dry indoor use only
|
Housing Color
|
Red with white lettering
|
Lever Color
|
White with red lettering
|
Material
|
Housing and pull lever are high-impact plastic
|
Dimension
|
95 mm (L) x 130 mm (W) x 63.5 mm (H)
|
Wire Connections
|
Screw terminal block
|
Wire Size
|
18 to 12 AWG (0.82 mm2 to 3.31 mm2)
|
