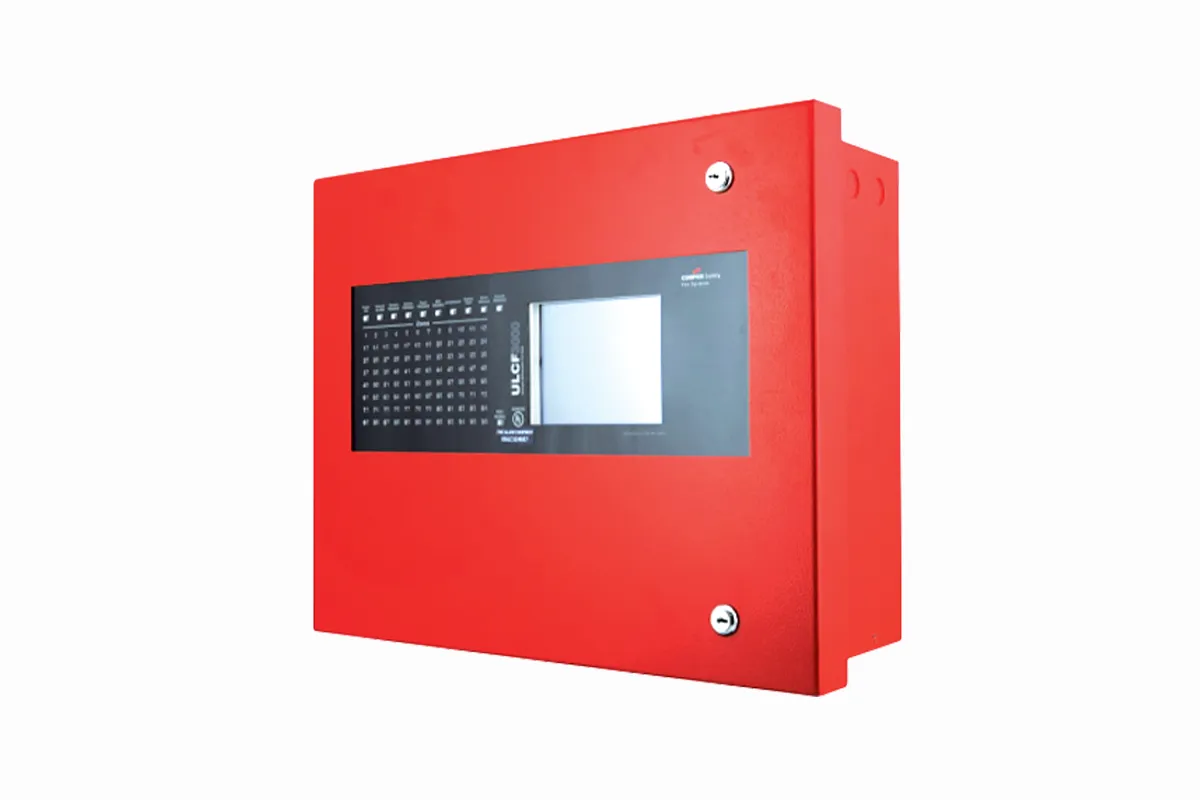

The Eaton ULCF3000 is a high specification intelligent addressable, wall or rack mounted, UL Listed control panel available in various loop configurations. It combines sophisticated functionality with simple operation and aesthetically pleasing design. The control panel has the ability to support complex cause and effect programming (via site installer) and a wide range of user controllable functions that make the panel ideal for a diverse range of projects from industrial applications through to large multi site commercial developments.
The ULCF3000 uses soft addressing to minimize installation time and remove the potential for error
associated with manual addressing. It can operate as a stand alone panel or as part of a networked system, and has powerful programming options that allow configurable control over whether messages from specific panels are transmitted around the network or remain local.
Code |
ULCF3000 / ULCF3000RM |
|---|---|
Description
|
UL intelligent addressable control panel
|
Standards
|
UL864 9th edition
|
Primary operating supply
|
120V ac / 240V ac, 60Hz, 2.0A supervised
|
Secondary operating supply
Battery voltage |
24V dc |
|---|---|
Battery charge current
|
1.0A (max)
|
Battery derating
|
factor 0.1
|
Battery capacity supervised
|
12Ah (max)
|
Notification appliance circuits Class B, Style Y, Sounder Group 1, Sounder 1, Sounder Group 1, Sounder 2, Sounder Group 2
Output voltage |
24V dc |
|---|---|
Output current
|
0.75A (max)
|
Line impedance
|
50Ω When powered by 240V ac, the maximum current of 3.0A is shared between these circuits
When powered by 120V ac, the maximum current of 2.25A is shared between these circuits
Circuits are supervised, power limited and regulated.
|
Notification appliance circuits Class B, Style Y, SYNC MODULE. NAC1, NAC2
Output voltage |
24V dc |
|---|---|
Output current
|
0.5A (max)
|
Line impedance
|
50Ω (max)
The maximum current of 0.5A is shared
between these circuits
Circuits are supervised, power limited and regulated.
|
Alarm, trouble contacts. Relay expansion
Unity power factor |
30V dc For connection to power limited sources only |
|---|
Aux relay (AC Trouble) contacts
Unity power factor |
30V dc, 1A For connection to power limited sources only |
|---|
Signaling line circuit Style [7] Class [A] – (Addressable Loop)
Rated voltage |
24V dc |
|---|---|
Maximum current
|
500mA
|
Line impedance
|
50Ω (max)
Supervised, power limited
|
Network SLC
Voltage |
5V dc |
|---|---|
Current
|
100mA (max)
|
Line impedance
|
50Ω (max)
Power limited
Limited to same enclosure installations
|
Physical
IP Rating |
IP30 |
|---|
Compatibility
Suitable for use with |
Eaton UL fire systems |
|---|
Our UL range has multiple options for intelligent addressable sensors. All sensors are designed for optimum functionality in mid-large sized builds. They are all soft addressed and have integral short circuit isolators. All UL addressable sensors are specifically designed for compatibility with the UL addressable sensor base (UCAB300).
Suitable for most applications. Fastest response to slow burning or smouldering fires which give rise to large visible smoke particles.
Description Addressable sensor, photoelectric
Standards UL268
Supply Ratings
Working voltage 18 V dc to 30 V dc
Voltage waveform Filtered dc +/- 1 V (max), ripple @120Hz
Standby current 220 μμA (average)
larm current 5 mA (max)
Timings
Start-up time 2 seconds
Reset time 2 seconds (max)
Sensitivity
Sensitivity 2.55+/- 0.33%/ft
Sensitivity checker Use No-Climb, TRUTEST, UL Listing 77TL
Heat Class
Heat element rating N/A
Heat detector spacing N/A
Physical
Mounting position Ceiling in open areas
IP rating IP40
Environmental
Operating temp. Range 14° to 140° F (-10° to 60° C)
UL listed temp. range 32° to 100° F (0° to 38° C)
Humidity (non condensing) 0% to 93% RH
Compatibility
Compatibility identifier W002
Compatible bases UCAB300
Suitable for use with Eaton UL fire systems
Dimensions
Diameter (mm) (incl base) 104
Depth – D1 (mm) (incl base) 45
Depth – D2 (mm) (excl base) 33
Performance
Heat class ULCAP320
Heat element rating N/A
Heat detector spacing N/A
Heat class N/A
Rate of rise with fixed heat sensor settings will detect a rapid increase in temperature or temperatures above 135°F, and should be used in environments where the ambient conditions might cause false alarms if smoke detection were to be used, for example where there is a high level of dust, fumes, steam or smoke under normal conditions. Fixed heat sensor settings will detect temperatures above 135°F or 194°F and should be used in environments where the ambient conditions might cause false alarms if smoke detection were to be used, for example where there is a high level of dust, fumes, steam or smoke under normal conditions.
Code ULCAH330
Description Addressable sensor, multi-mode heat
Standards UL521
Supply ratings
Working voltage 18 V dc to 30 V dc
Voltage waveform Filtered dc +/- 1 V (max), ripple @120Hz
Standby current 220 μμA (average)
Alarm current 5 mA (max)
Timings
Start-up time 2 seconds
Reset time 2 seconds (max)
Sensitivity
Sensitivity N/A
Sensitivity checker Use No-Climb, TRUTEST, UL Listing 77TL
Heat Class
Heat element rating 135ºF ROR + Fixed, + Fixed 135ºF Fixed, 194ºF Fixed
Heat detector spacing 50ft
Physical
Mounting position Ceiling in open areas
IP rating IP40
Environmental
Operating temp. range 14° to 140° F (-10° to 60° C)
UL listed temp. range 32° to 100° F/150° F (0° to 38° C/65° C)
Humidity (non condensing) 0% to 93% RH
Compatibility
Compatibility identifier W002
Compatible bases UCAB300
Suitable for use with Eaton UL fire systems
Dimensions
Diameter (mm) (incl base) 104
Depth – D1 (mm) (incl base) 55
Depth – D2 (mm) (excl base) 43
Performance
Heat class ULCAH330
Heat element rating ROR + Fixed 135°F, Fixed 135°, Fixed 194°F
Heat detector spacing 50ft
Heat class A2R
ULCAH330 Rate of rise with fixed heat sensor settings will detect a rapid increase in temperature or temperatures above 135°F and should be used in environments where the ambient conditions might cause false alarms if smoke detection were to be used, for example where there is a high level of dust, fumes, steam or smoke under normal conditions.
ULCAH330 Fixed heat sensors settings will detect temperatures above 135°F or 194°F and should be used in environments where the ambient conditions might cause false alarms if smoke detection were to be used, for example where there is a high level of dust, fumes, steam or smoke under normal conditions. For photoelectric and opto-heat operation the sensor automatically compensates for gradual increase in the scatter signal due to contamination e.g. dust build up.

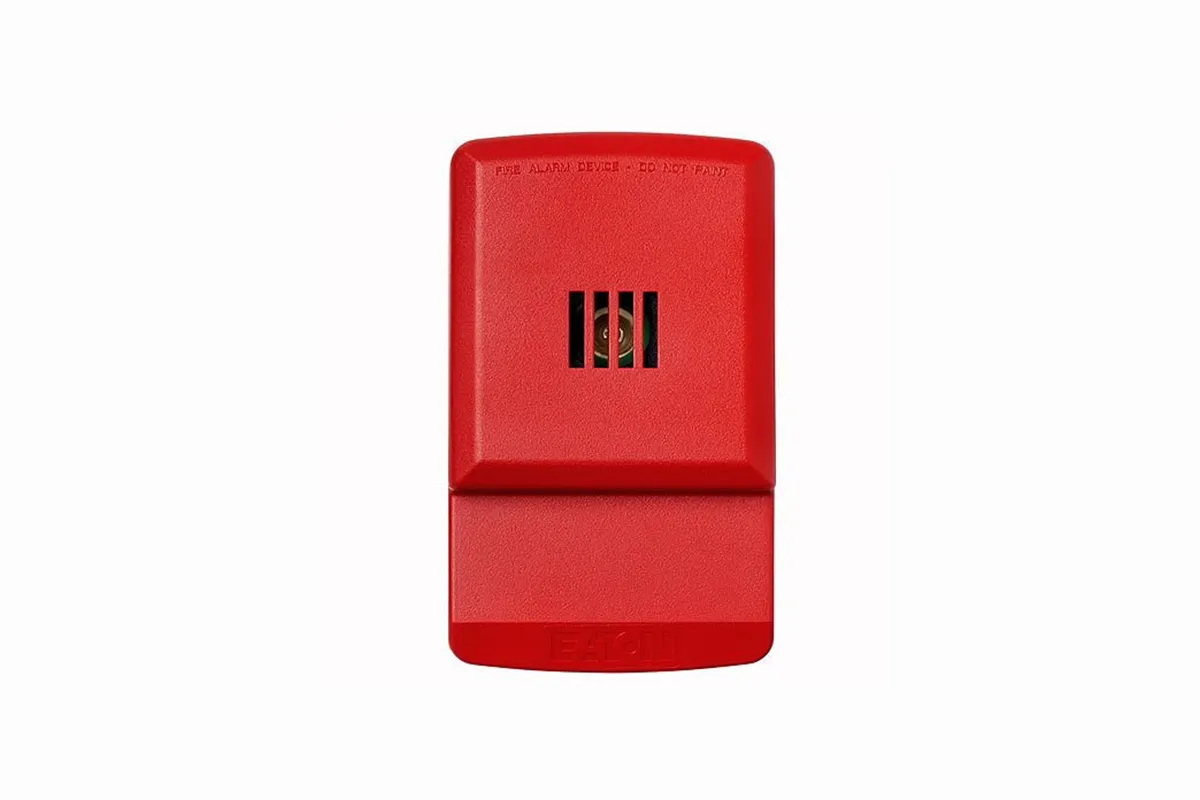

The ceiling mounted (HNWC) and wall mounted (HNR) horns are designed to exceed
your expectations and offer the most polished, feature rich and cost effective solution.
Both the (HNWC) and the (HNR) are compatible with the Cooper UL Listed range of intelligent addressable fire systems. Architects and engineers can now specify the industries sleekest looking fire notification appliance, while being afforded all the features and benefits that provide the industry’s lowest total cost of ownership.
The combination of 12V dc and 24V dc in one unit provides the capability to use a single unit for different installation requirements These units use a universal, common mounting base making them ideal for retrofit jobs, limited space environments and pre-existing wire configurations. They come complete with a contact cover for protection against dirt, dust, paint and damage to the contacts. This contact cover also acts as
a shunting device to allow pre-wire testing for common wiring issues.
Code |
HNR |
HNWC |
|---|---|---|
Description
|
Horn, Wall Mounted
|
Horn, Ceiling Mounted
|
Standards
|
UL Standard 1971 & UL Standard 464
|
UL Standard 1971 & UL Standard 464
|
Operation | ||
|---|---|---|
12V dc/24V dc
|
90/95/99 dBA
|
90/95/99 dBA
|
Environmental
| ||
Operating Temperature
|
0°C to 49°C
|
0°C to 49°C
|
Humidity (Non Condensing)
|
0 to 93 %RH
|
0 to 93 %RH
|
Compatibility
| ||
Suitable for use with
|
Cooper UL Fire Systems
|
Cooper UL Fire Systems
|

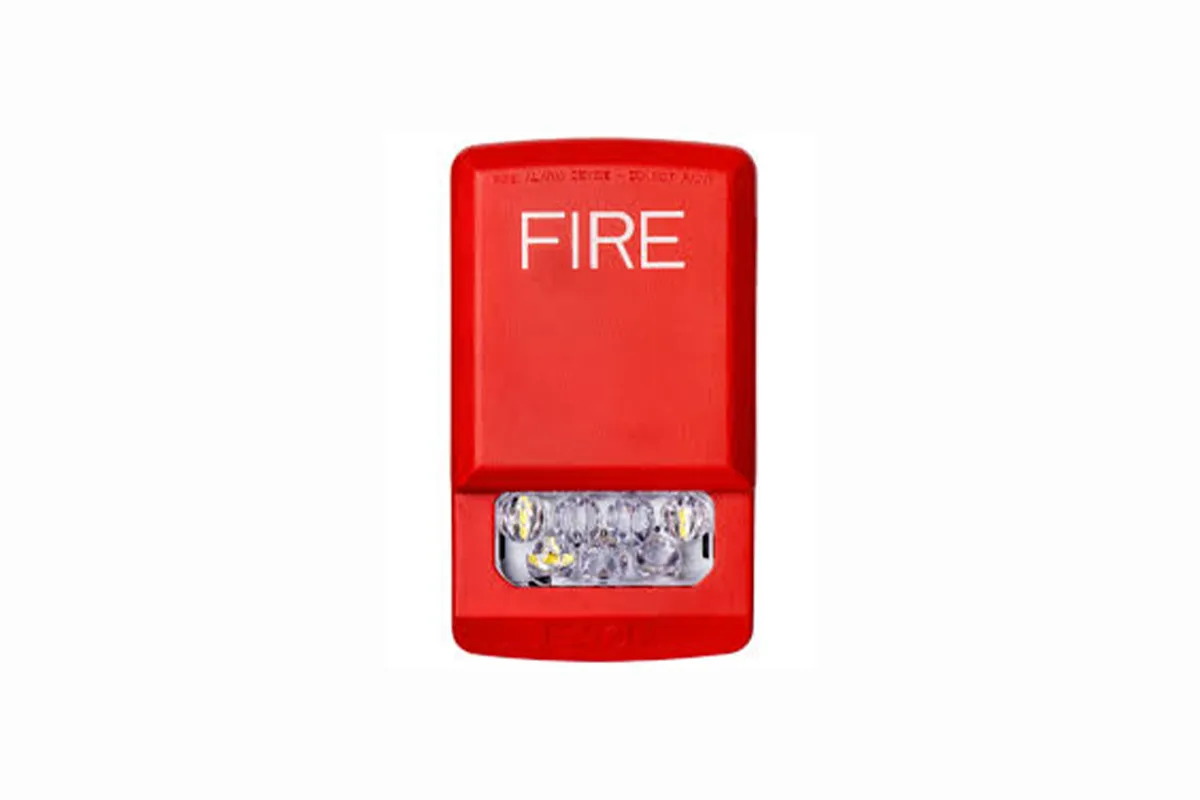

The ceiling mounted (HSWC) and wall mounted (HSR) horn strobes are designed to exceed your expectations and offer the most polished, feature rich and cost effective solution. Both the (HSWC) and the (HSR) are compatible with the Cooper UL Listed range of intelligent addressable fire systems.
Architects and engineers can now specify the industries sleekest looking fire notification appliance, while being afforded all the features and benefits that provide the industry’s lowest total cost of ownership. The combination of 12V dc and 24V dc in one unit provides the capability to use a single unit for different installation requirements These units use a universal, common mounting base making them ideal for retrofit jobs, limited space environments and pre-existing wire configurations. They come complete with a contact cover for protection against dirt, dust, paint and damage to the contacts. This contact cover also acts as a shunting device to allow pre-wire testing for common wiring issues.
Code |
HNR |
HNWC |
|---|---|---|
Description
|
Horn, Wall Mounted
|
Horn, Ceiling Mounted
|
Standards
|
UL Standard 464
|
UL Standard 464
|
Operation | ||
|---|---|---|
12V dc/24V dc
|
15/1575/30/75/95/110/135/185cd, 90/95/99dB(A)
|
15/30/60/75/95/115/150/177cd, 90/95/99dB(A)
|
Environmental
| ||
Operating Temperature
|
0°C to 49°C
|
0°C to 49°C
|
Humidity (Non Condensing)
|
0 to 93 %RH
|
0 to 93 %RH
|
Compatibility
| ||
Suitable for use with
|
Cooper UL Fire Systems
|
Cooper UL Fire Systems
|

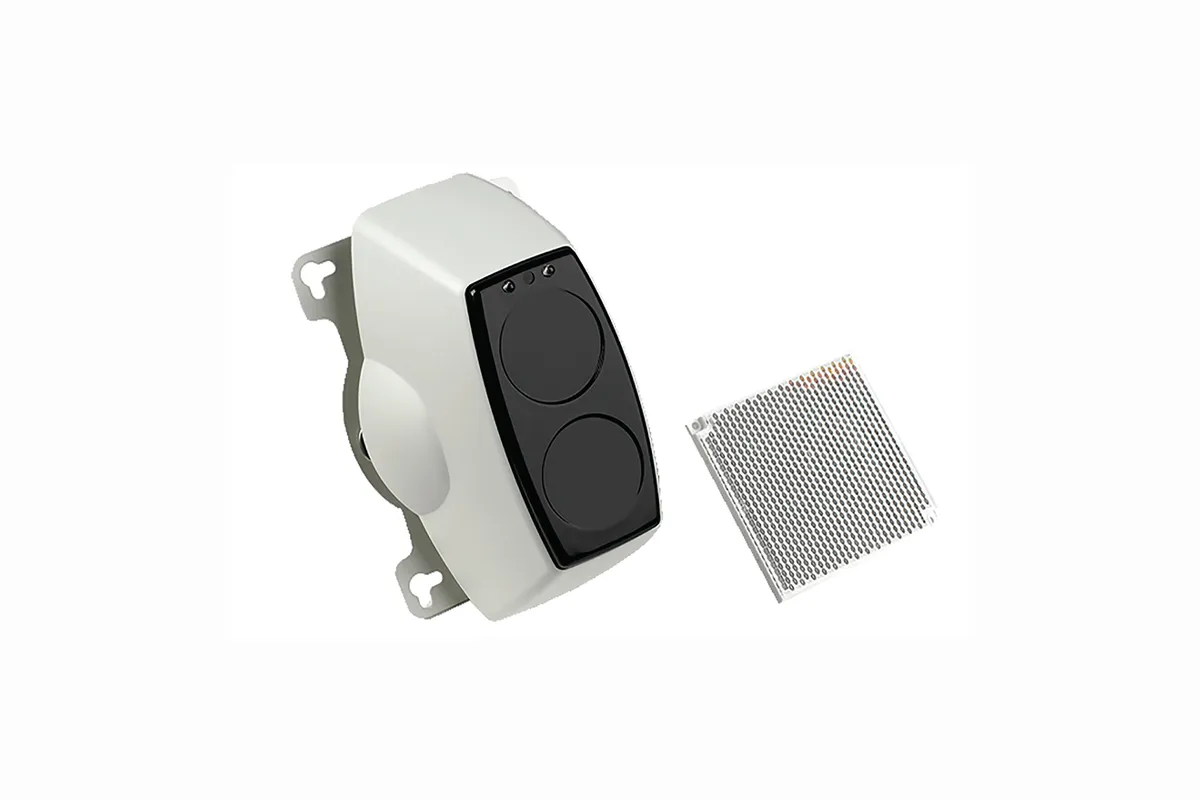

Two versions of the intelligent addressable loop powered reflective beam detectors are available in this range, the MAB50R-EM with a range of up to 50 metres and the MAB100R-EM with a range of 50 to 100 meters. Both devices are compatible with Eaton’s range of intelligent addressable fire systems. These intelligent addressable loop powered reflective beam detectors are extremely simple to install, they require no separate power supply, operate on a reflective principle and have a simple set up mode to enable easy and quick alignment during installation.
These devices are designed to replace individual point detectors in large open areas such as warehouses. Fire and fault conditions are signaled to the control panel using standard loop wiring so no additional interconnection required.
Code |
MAB50R-EM |
MAB100R-EM |
|---|---|---|
Description
|
Reflective beam detector
|
Reflective beam detector
|
Standards
|
EN54 Pt12 & Pt17
|
EN54 Pt12 & Pt17
|
Specification | ||
|---|---|---|
Operating voltage
|
18V dc to 30V dc
|
18V dc to 30V dc
|
Quiescent current
|
< 5mA (no LED’s illuminated)
|
< 5mA (no LED’s illuminated)
|
Alarm current
|
< 9mA
|
< 9mA
|
Alignment current
|
< 18mA
|
< 18mA
|
Power up time
|
10 seconds (approx)
|
10 seconds (approx)
|
Operating range
|
5 to 50 metres
|
50 to 100 metres
|
Operating width
|
15 meters
|
15 meters
|
Tolerance to beam misalignment at 35%
|
Detector ± 0.8°, Prism ± 5.0°
|
Detector ± 0.8°, Prism ± 5.0°
|
Fire alarm thresholds
|
2.50dB (25%) 3.74dB (35%) 6.02dB (50%)
|
2.50dB (25%) 3.74dB (35%) 6.02dB (50%)
|
Optical wavelength
|
880nm
|
880nm
|
Environmental
| ||
Operating temperature
|
-10°C to +55°C
|
-10°C to +55°C
|
Humidity (non condensing)
|
0 to 93% RH
|
0 to 93% RH
|
Physical
| ||
Construction
|
PC/ABS
|
PC/ABS
|
Colour
|
White & black
|
White & black
|
Dimensions (H x W x D)
|
210mm 130mm x 120mm
|
210mm 130mm x 120mm
|
Weight
|
0.8kg
|
0.8kg
|
Ingress protection
|
IP40
|
IP40
|
Compatibility
| ||
Suitable for use with
|
Eaton intelligent addressable fire systems
|
Eaton intelligent addressable fire systems
|

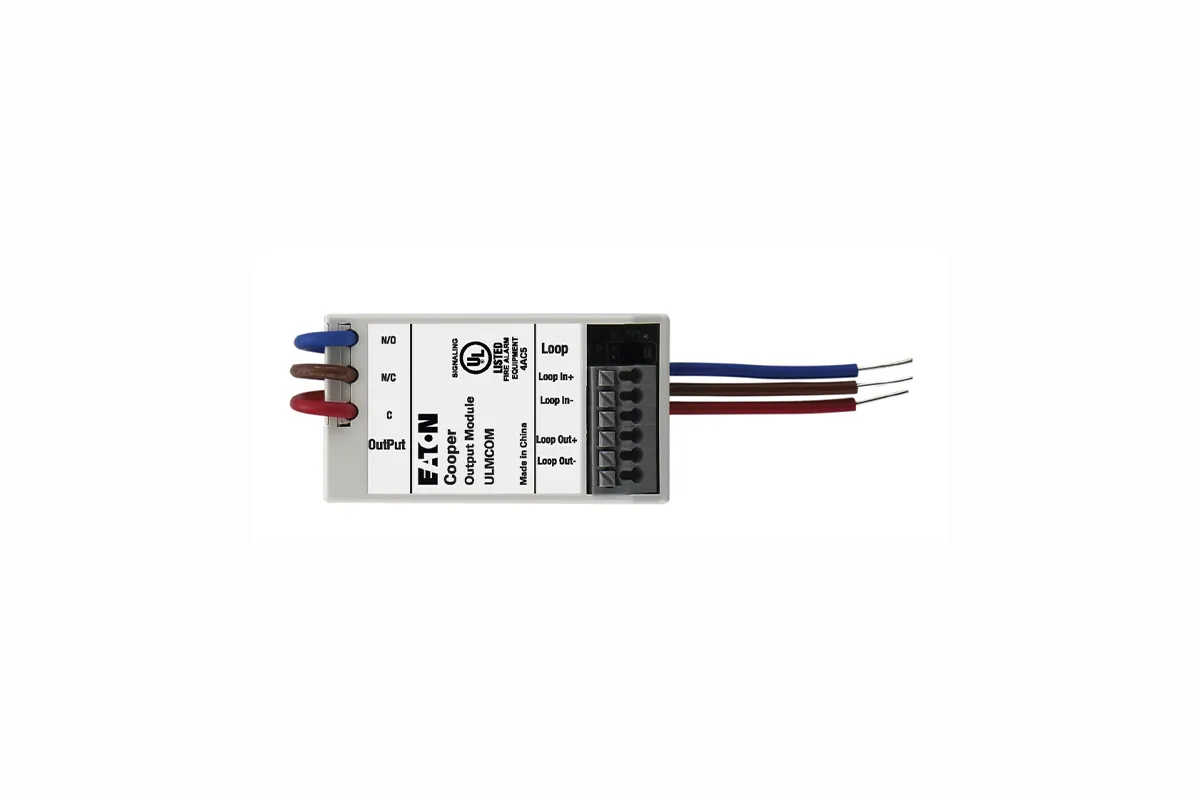

An extensive range of interfaces are available to support the Eaton range of UL intelligent addressable control panels, providing solutions for most design requirements. The UL single channel output unit (ULMCOM) is an extremely compact unit ideal for incorporation in to external equipment and suitable for switching low voltages (24V dc at 1A maximum). This unit incorporates a set of non latching relay contacts and is suitable for switching HVAC control circuits, plant shutdown control circuits, fire door closure etc. The ULMCOM is identified by the panel as an input /output unit, with a maximum of 20 units permitted per loop.
Code : ULMCOM and ULMCOM-S
Description : Single channel output units
Standards : UL864 9th edition
Signalling line circuit (Style 7, Class A, Supervised, Power Limited)
Current : 0.322mA (max)
Output relay (supervisory programmable)
Switching voltage : 24V dc to 30V dc
Contact rating : 1A Resistive, pf=1 (max)
Max line impedance : 16Ω
Power factor : 1
Environmental
Operating temperature : 0°C to 49°C
Humidity (non condensing) : 0 to 93 %RH
Physical
Dimensions (H x W x D) : 65mm x 35mm x 18.5mm
Weight : 0.05kg
Ingress protection : IP40
Compatibility
Suitable for use with : Eaton UL fire systems

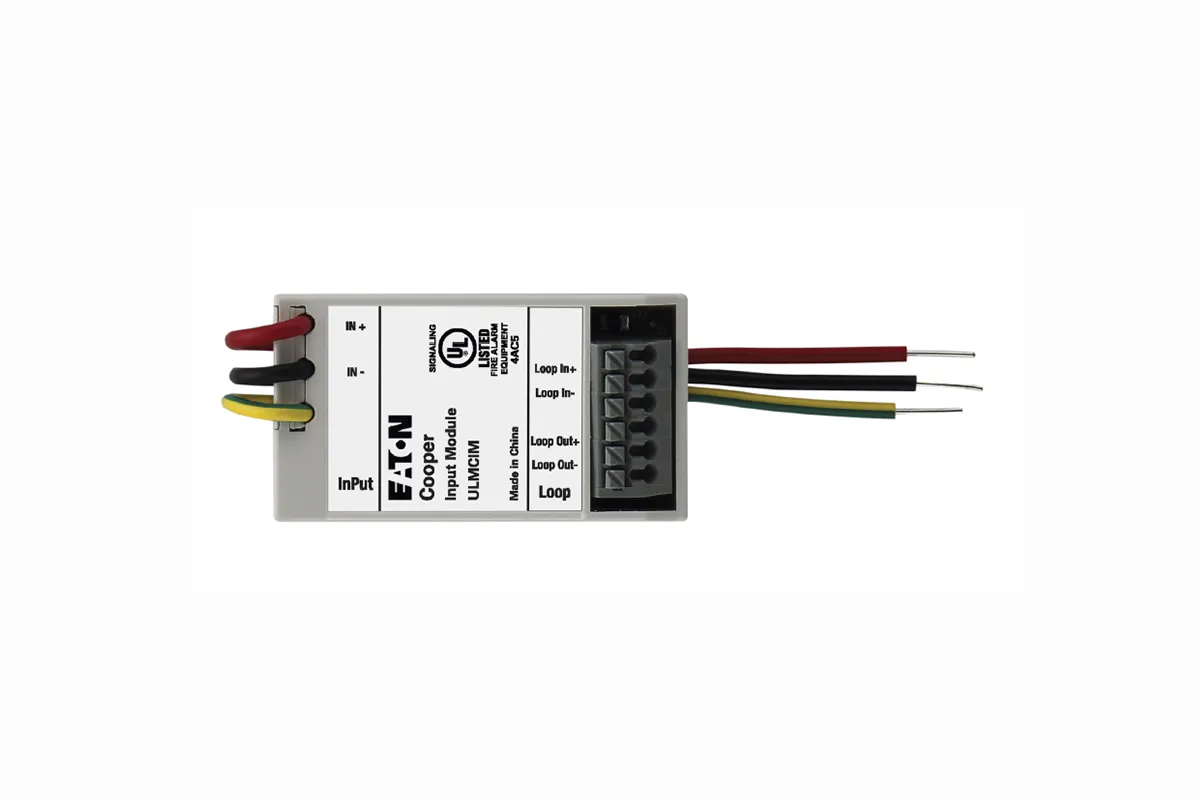

An extensive range of interfaces are available to support the Eaton range of UL intelligent addressable control panels, providing solutions for most design requirements. The UL micro single channel input unit (ULMCIM) is a single input, soft addressed micro interface, incorporating integral short circuit isolators. It is extremely compact and therefore ideal for incorporation into other equipment. It is designed for applications requiring the monitoring of a set of normally open, volt free contacts such as sprinkler system flow switches, auxiliary panel fire/fault signals as well as non fire input signals such as flow valve open contacts, generator start up, fire door closed etc.
Code ULMCIM / ULMCIM-C
Description : Single channel input units
Standards : UL864 9th edition
Signalling line circuit (Style 7, Class A, Supervised, Power Limited)
Current : 332μA
Operating voltage : 24V dc
Input (Initiating Circuit Class B, Style C, Supervised, Power Limited)
Voltage : 8.4Vpp (pulsed every 1 sec)
Current 1 : .2mA
Trigger resistance : 5.6kΩ
End of line resistor : 22kΩ
Line impendance 1 : 6 (max)
Environmental
Operating temperature : 0°C to 49°C
Humidity (non condensing) : 0 to 93 %RH
Physical
Dimensions (H x W x D) : 65mm x 35mm x 18.5mm
Weight : 0.05kg
Ingress protection : IP40
Compatibility
Suitable for use with : Eaton UL fire systems

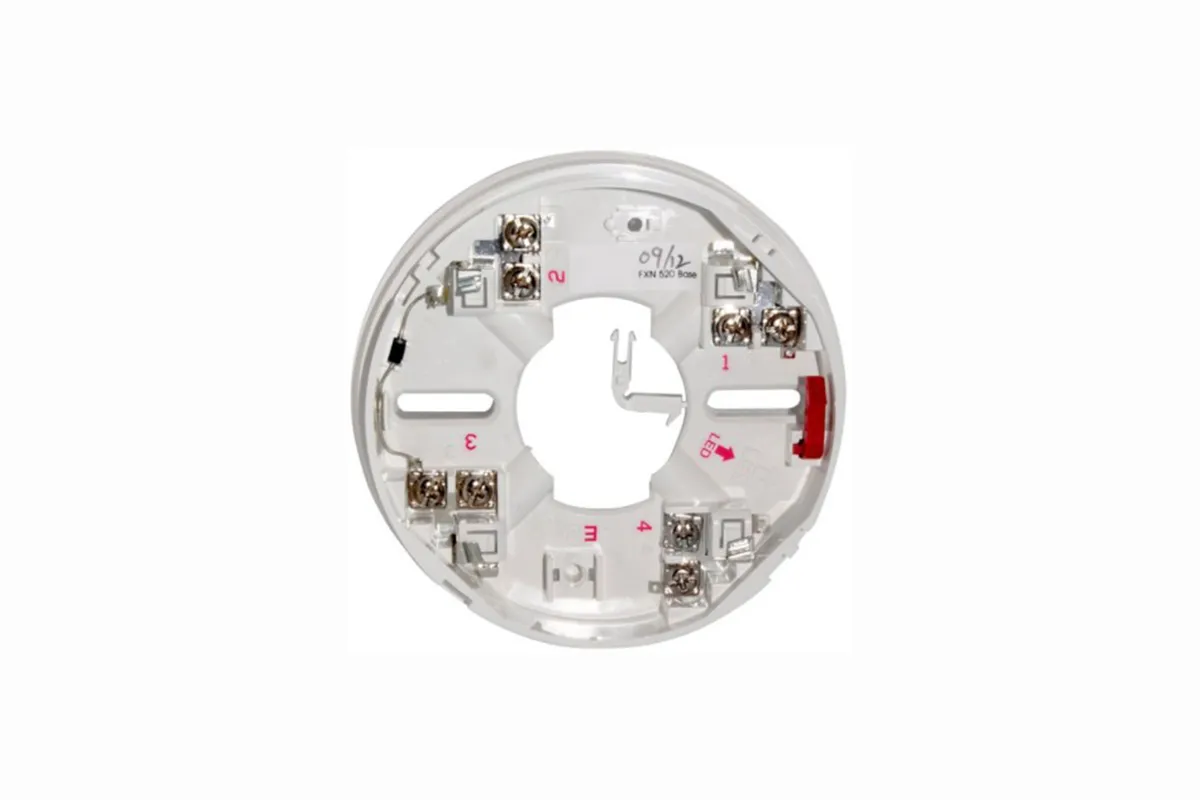

The EFXN520 conventional standard base has been specifically designed to be compatible with the Cooper / JSB range of conventional detectors. This standard base has been designed for flexibility, simplicity and speed of installation.
It incorporates purpose designed devices to provide fault warning if detector is removed whilst maintaining full zone wiring integrity. The base has a schotty diode in series with the negative terminals to enable fault monitoring and allow the circuit to continue if a detector is removed.
Key Features:
Code : FXN520
Description : Standard base
Physical
Construction : PC/ABS
Colour : White
Dimensions (Dia x D) 104mm x 22mm
Compatibility
Suitable for use with : JSB conventional detectors
