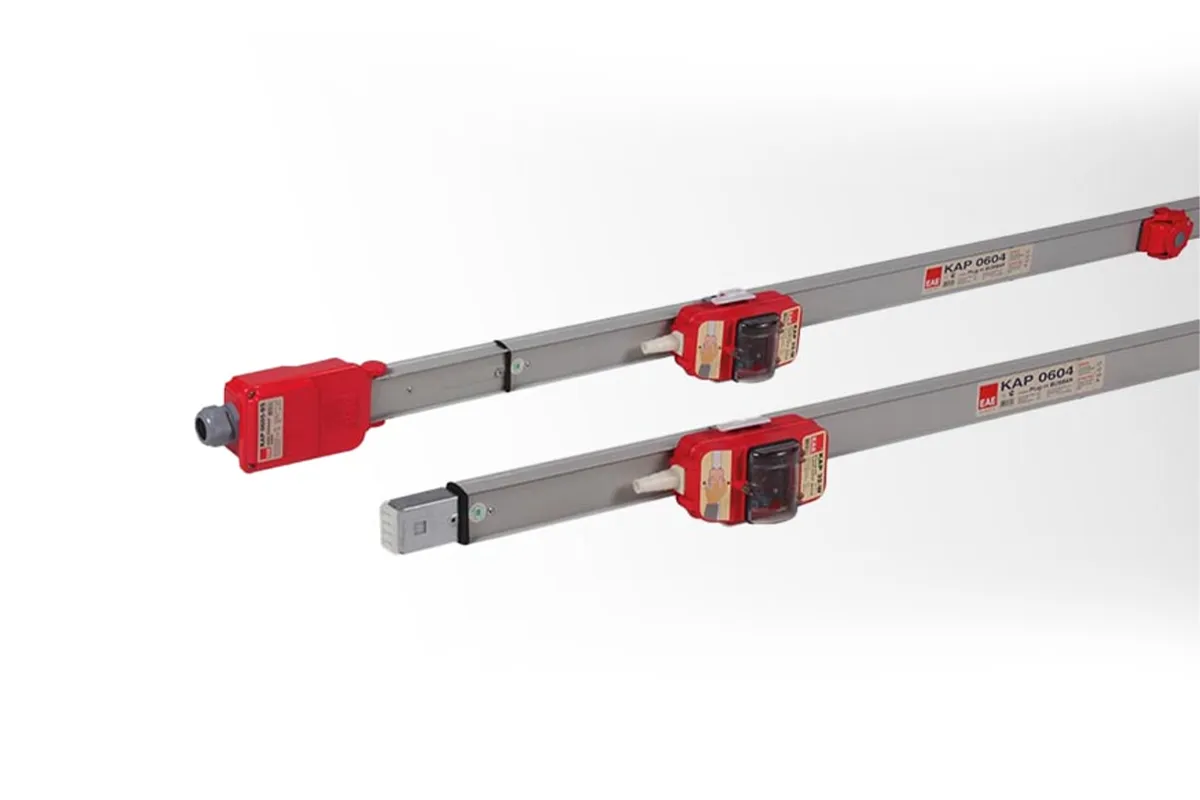

This modular power transmission and distribution system features insulated aluminum or copper conductors enclosed in a protective casing. Power is transmitted from a central source—such as a transformer, generator, or panel—throughout the facility, with energy distributed to various loads via tap-off boxes.

The Graziadio C.K SERIES busbars, available in ratings from 800 A to 5000 A, are ideal for both commercial and industrial buildings, even in tight spaces. The system’s compact design allows for edgewise, flat, or vertical installation.

Key features include:

Double-layer, self-extinguishing V TM-0 halogen-free polyester insulation (thermal class F)

An aluminum housing for mechanical protection and sealing

Matte black coating to enhance heat dissipation

Standard 4-meter straight lengths to reduce joint count and installation time

Custom lengths available upon request

These busbar systems provide efficient, safe, and space-saving power distribution for demanding environments.
